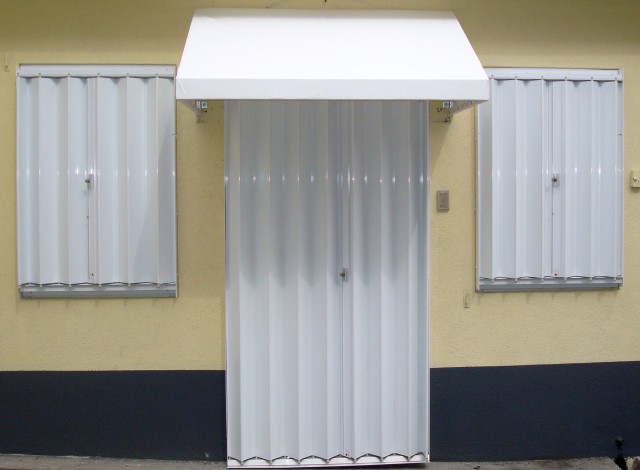

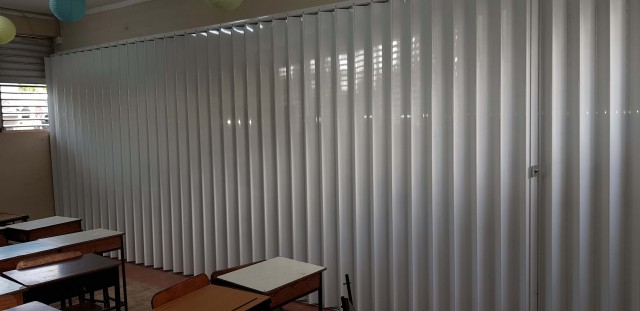

Accordion Shutters

Let us cover your world

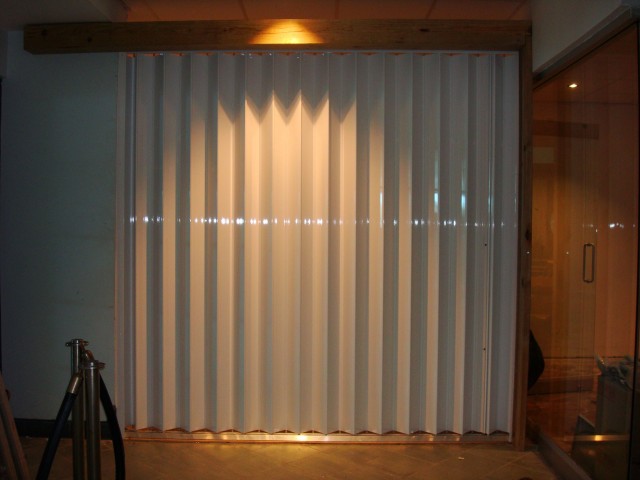

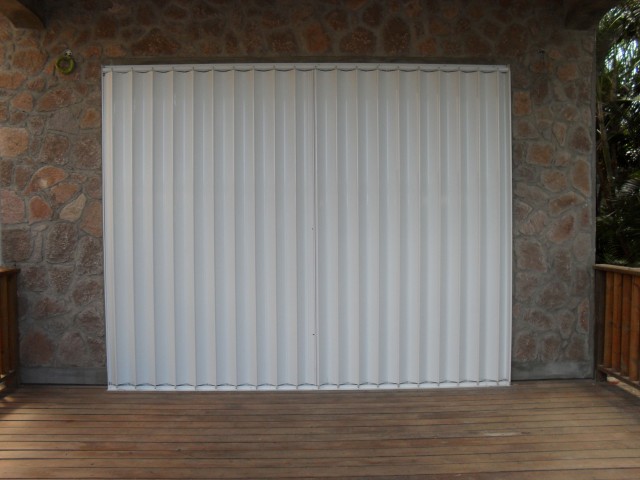

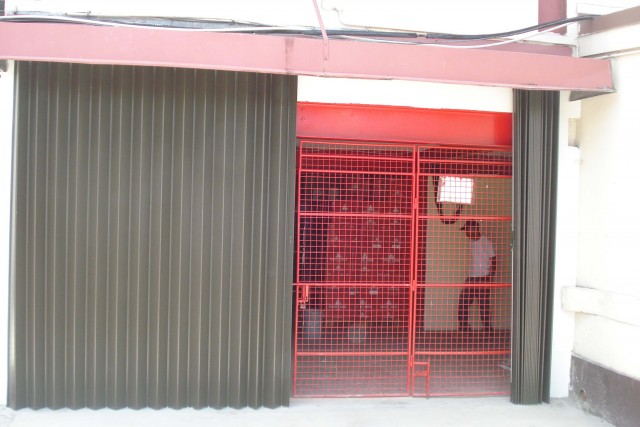

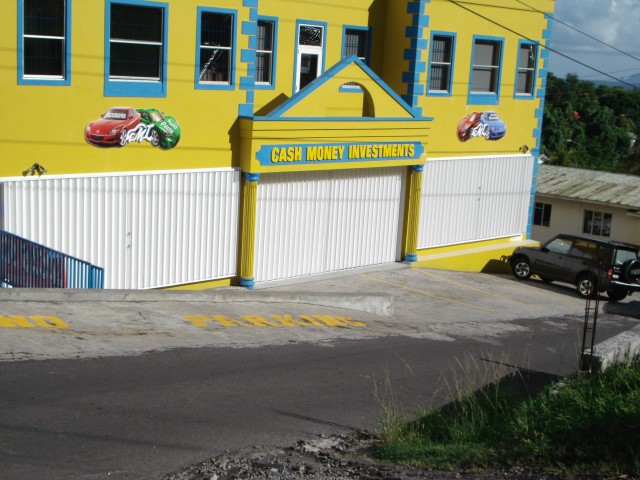

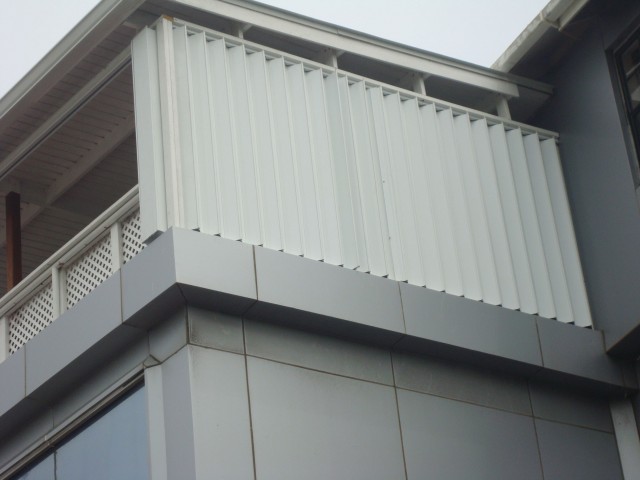

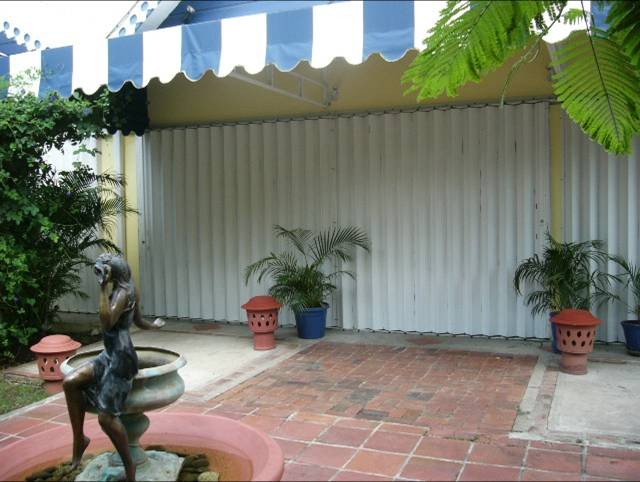

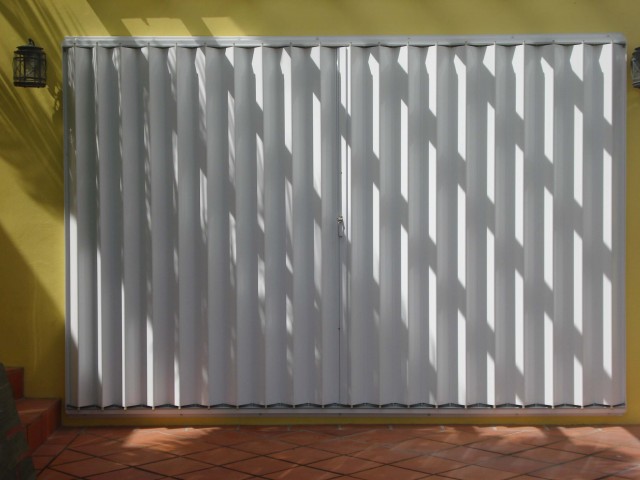

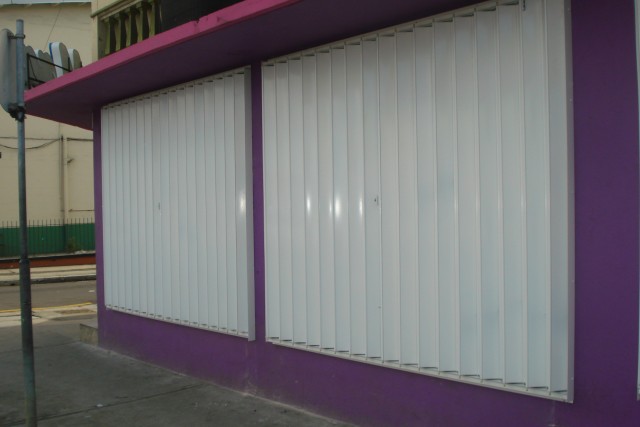

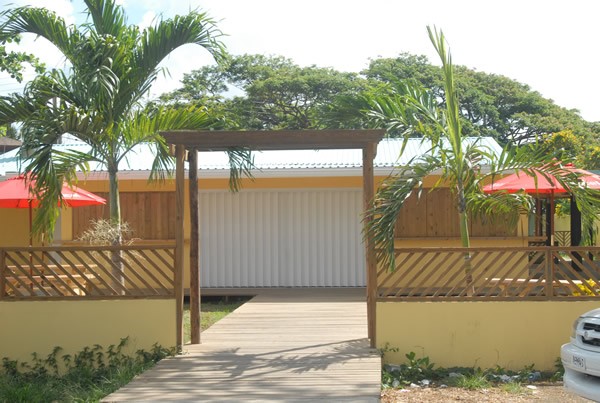

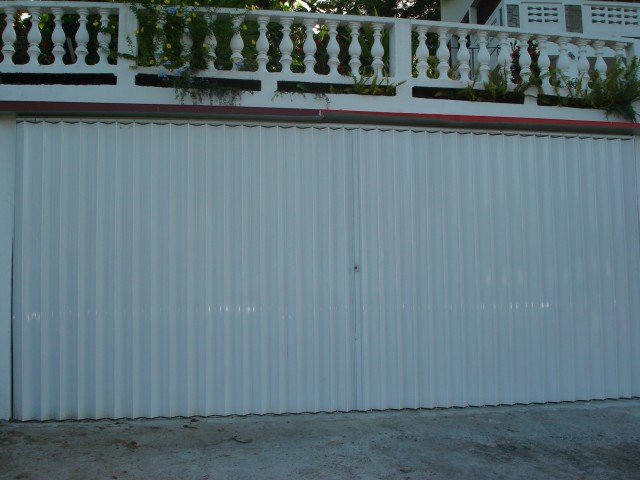

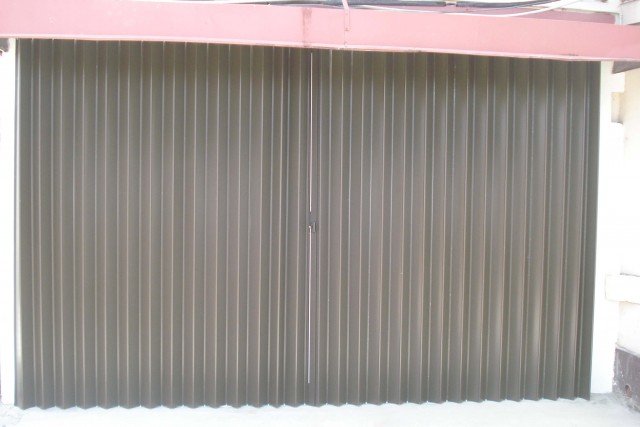

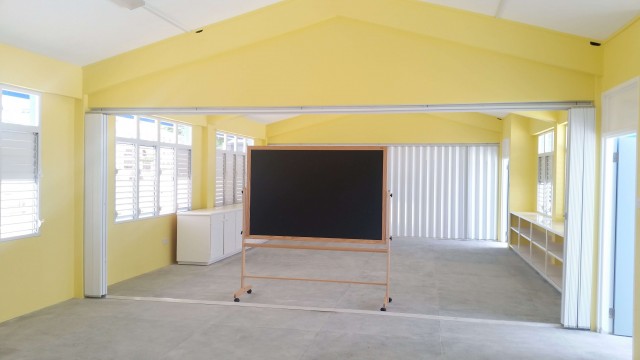

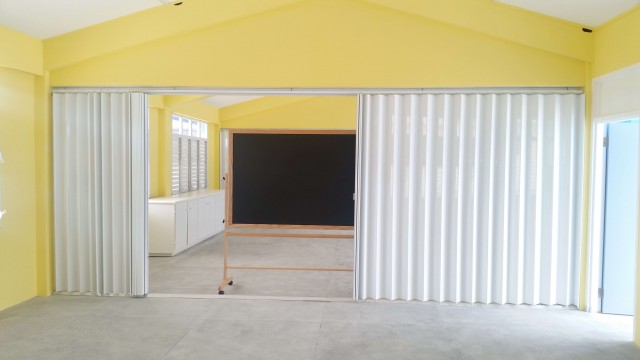

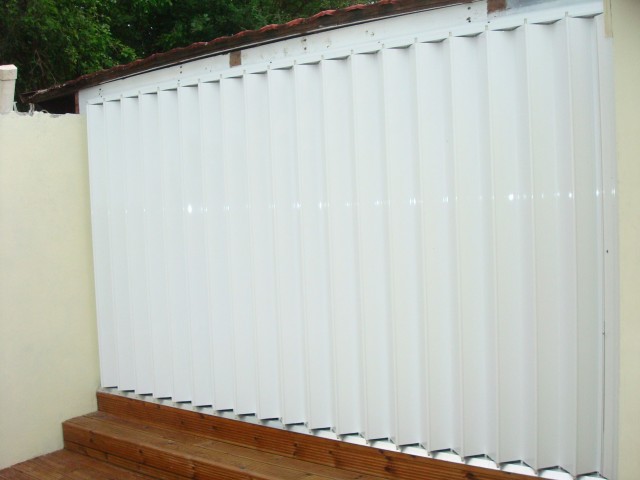

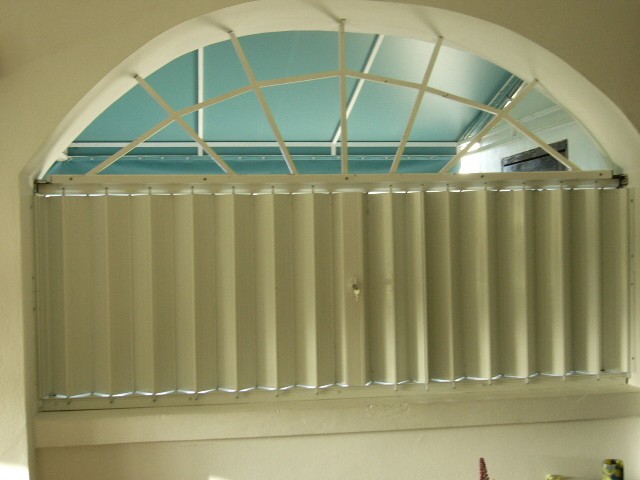

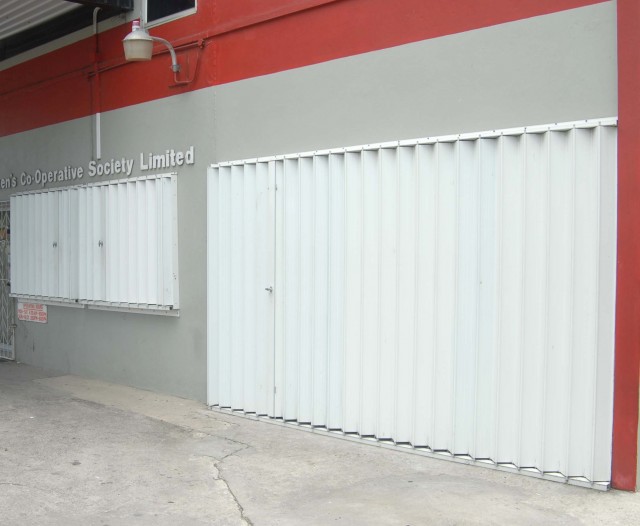

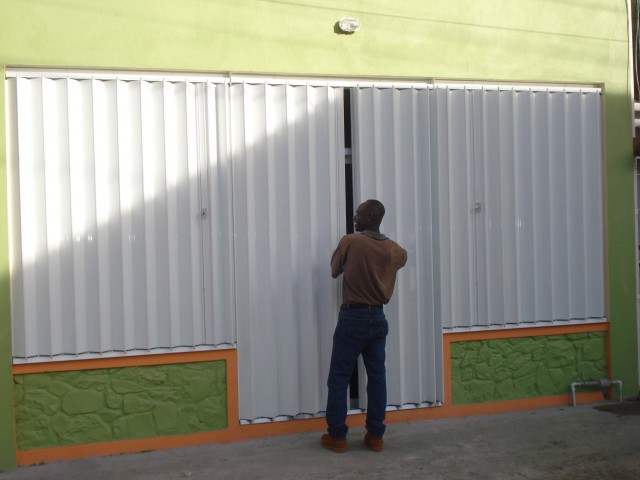

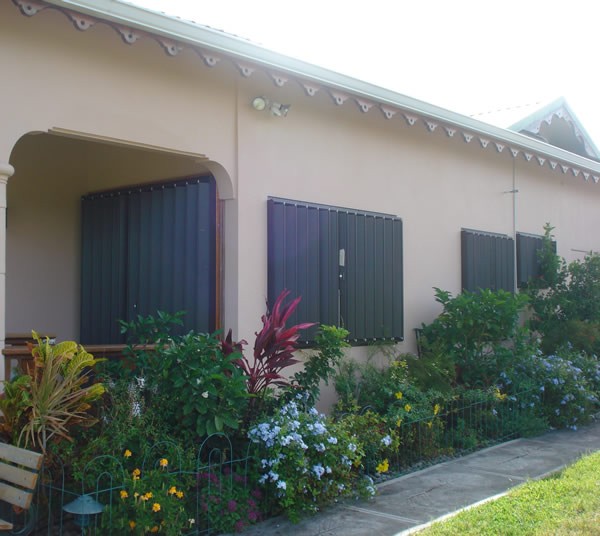

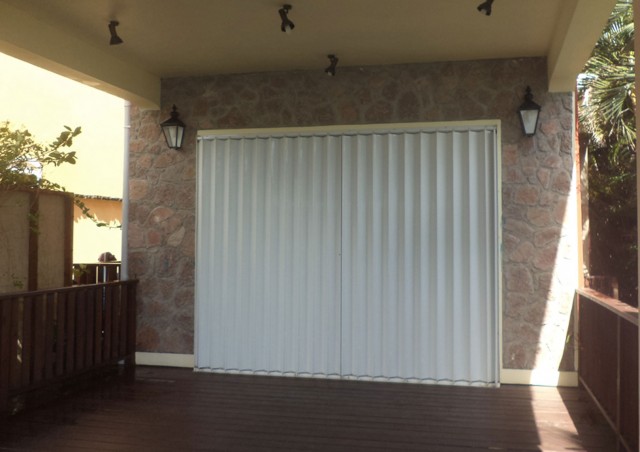

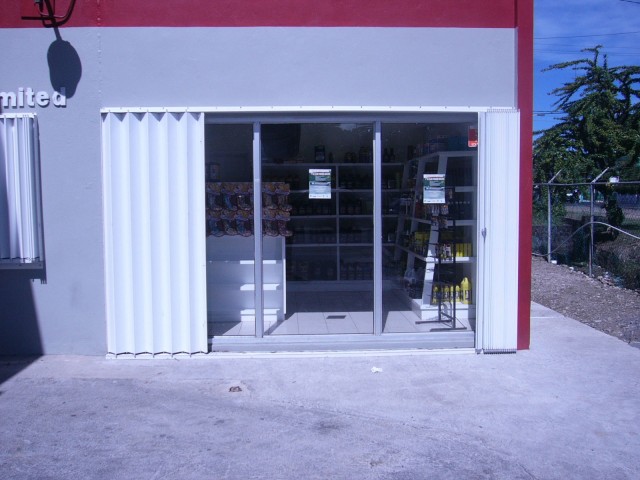

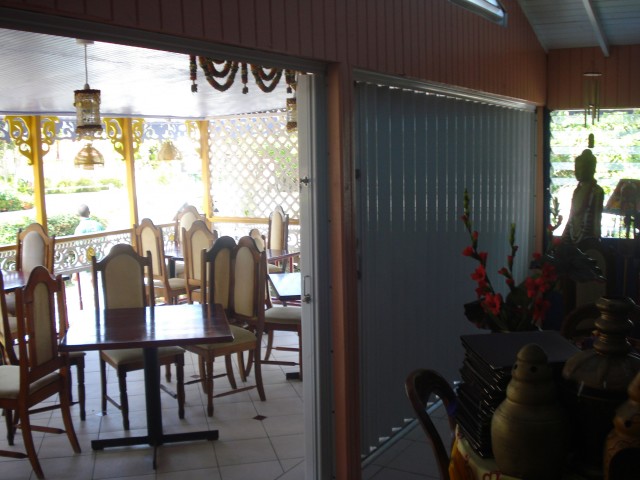

Accordion Shutters

The Accordion Shutters are made from the highest quality extruded aluminum available, and they are manufactured with the strictest attention to detail and performance to bring you a product with unparalleled strength durability and beauty.

The Accordion Shutter moves horizontally between upper and lower tracks. The interlocking blades are made of extruded aluminum with a wheel assembly attached to the top to allow for easy movement from left to right and right to left. The Accordion Shutter is designed to cover large openings and to withstand winds and potential impact in a Category 5 hurricane.

Application(s)	Outdoor
Security Protection	Yes
Hurricane Protection	Yes
Minimum Windspeed Rating	175 Mph
Impact Tested	Yes
Maximum Pressure	200 psf
Maximum Width (inches)	Unlimited
Maximum Height (inches)	148″
Lock	Push Lock
Motor	No

FEATURES

Made from high quality extruded aluminum
Maximum strength and security
Custom made to fit your windows and doors
Does not rust
Convenient operation from inside or outside of the building
Walk over tracks available
Countersink floor tracks if required
Push lock feature
Standard colours - white - other colours are available
Easy maintenance
Unlimited widths - height 12 ft
Use No. 14 guide screws
5" blade
Powder Coated for long lasting finish
Smallest stacking in the industry
Designed for low and high rise buildings
More versatile floor tracks
10 year warranty - bushings, wheels and screws - 1 year warranty, under normal wear and tear conditions

Always measure width by height

For Recess and Surface Mount Installation

Measure the opening width
Measure the opening height
Remember there is stacking on either side of your opening.
Client to indicate whether installation is recess of surface
Client to indicate if product is a window or a door”

Note: Please take into consideration, bands of wood, tiles or other instruments that may affect the size and installation of the shutter.

Let us cover your world

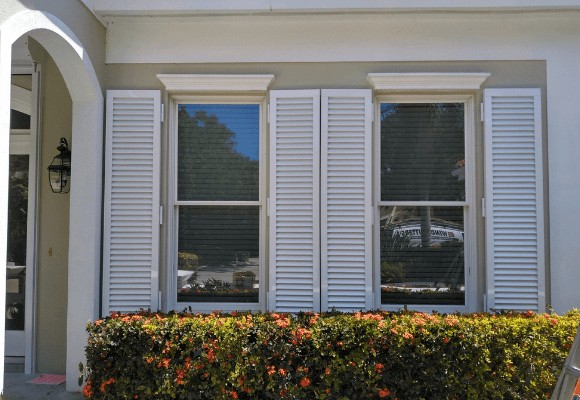

Colonial Shutters

Colonial Shutters are customized to size and can be facilitated by Caribbean Awning Production Company Ltd. Coloinial Shutters combine decorative appeal and traditional window shutters. It provides hurricane protection against wind and flying debris.

FEATURES

Architecturally pleasing
Popular as storm protection and adds to the charm of your home.
Easy to install
Easy operation from inside or outside
Arches, angles available
Covers openings up to 16 ft. wide and 15 ft. high
Various colors
Permanently attached to the house

CONSIDERATIONS

If you are in the design stage ensure that there is clear space for the installation of these shutters
Require enough room above the shutter for hinges and 4” down for the support arms
Flat leveled, smooth surface required

MEASUREMENTS

Always measure width by height

For Surface Mount Panel:

Measure the inside width - divide opening width by 2 and add 2”
Measure the inside height - add 4” to the height

For Recess Mount:

Panel coverage will be reduced by ½” from width and height of the opening

Let us cover your world

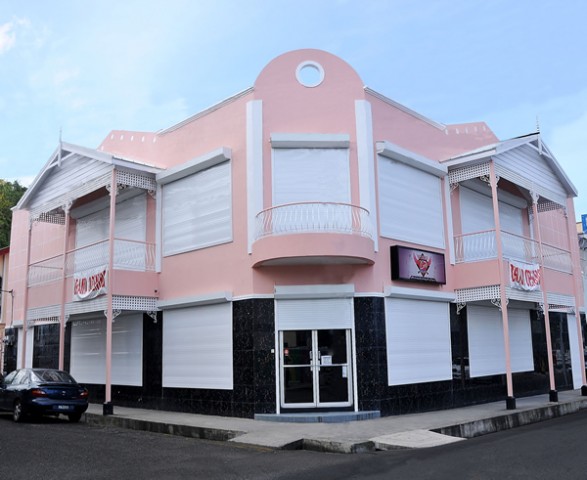

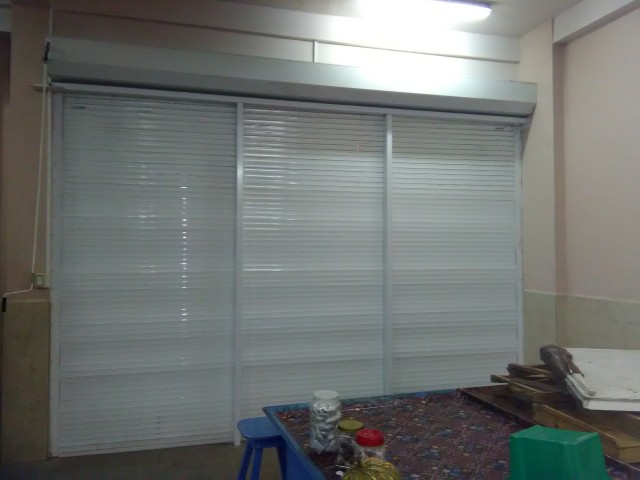

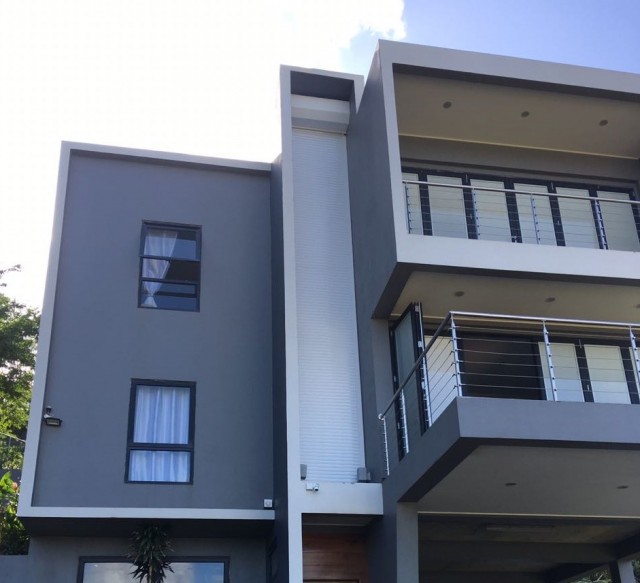

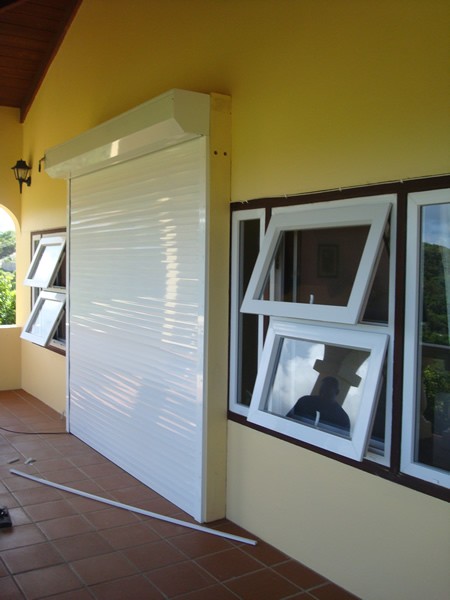

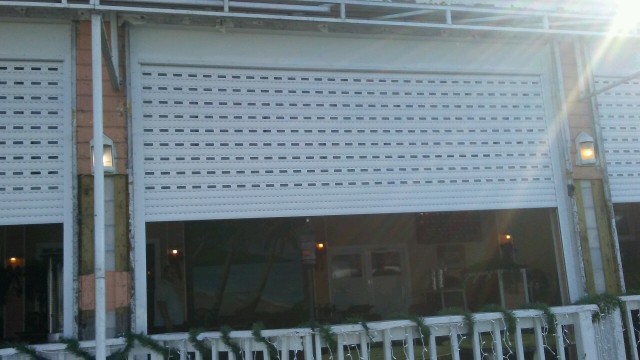

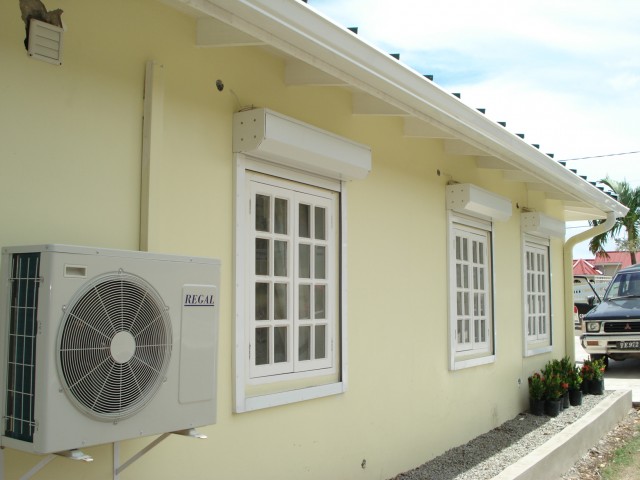

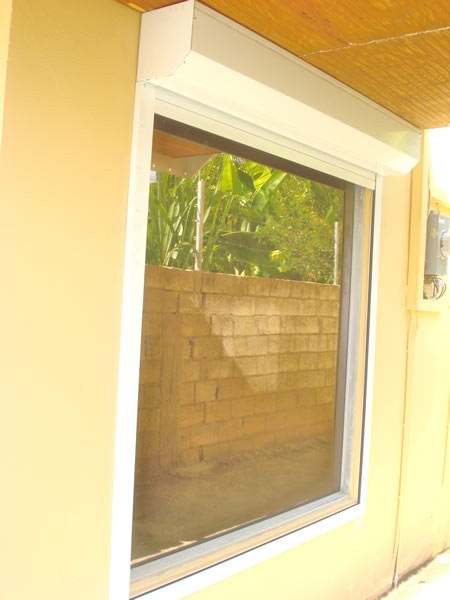

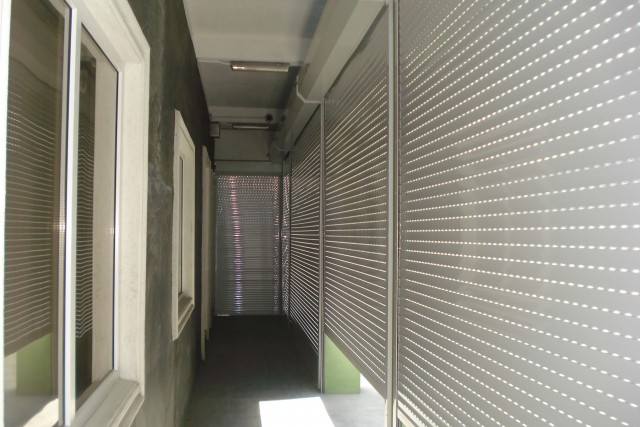

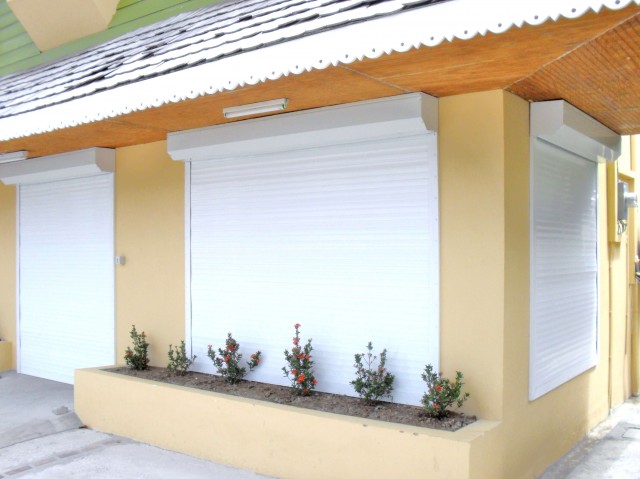

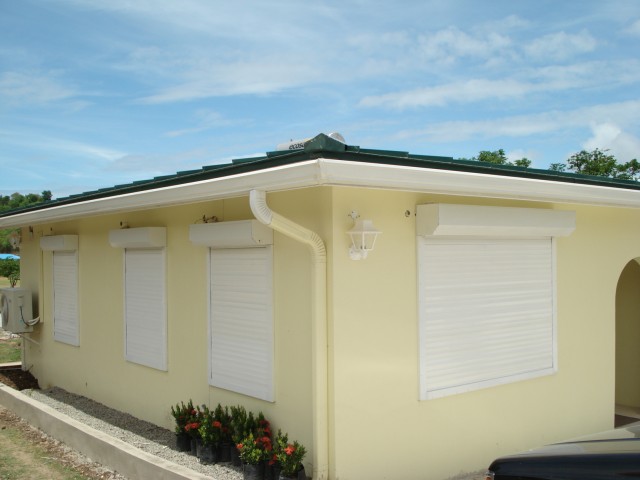

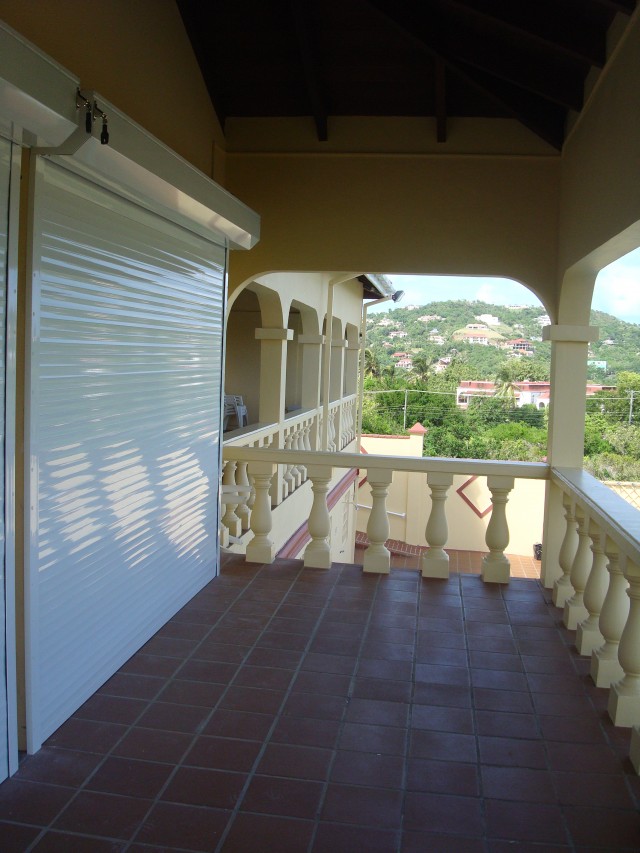

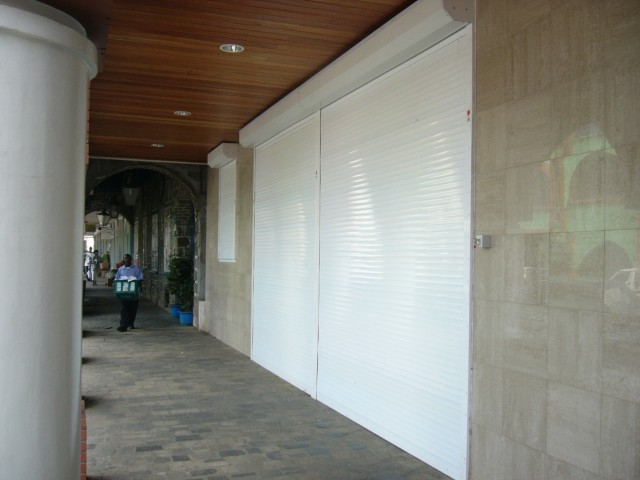

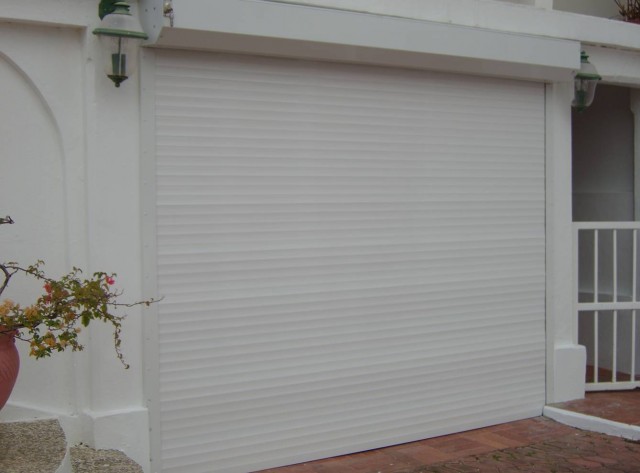

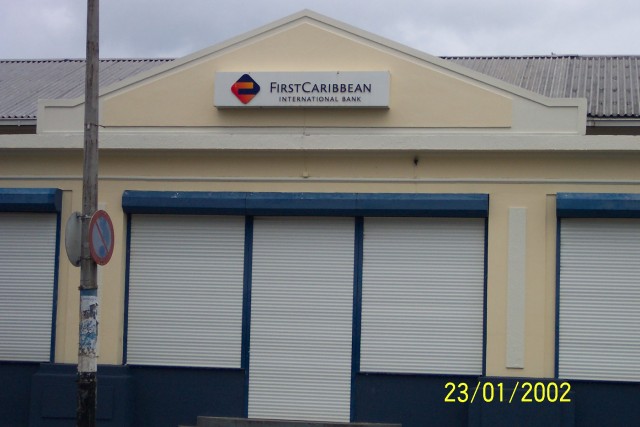

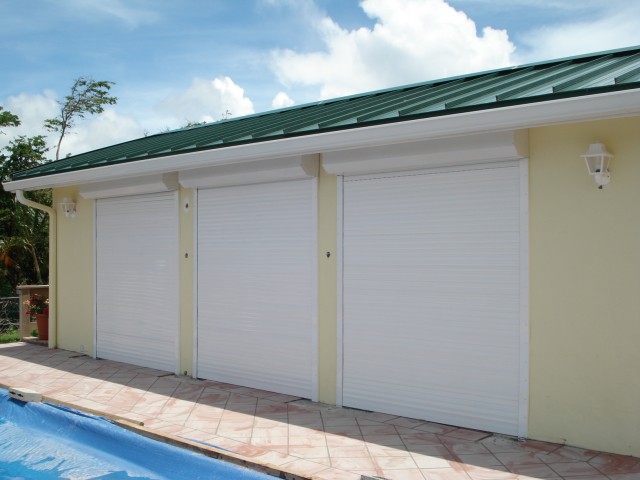

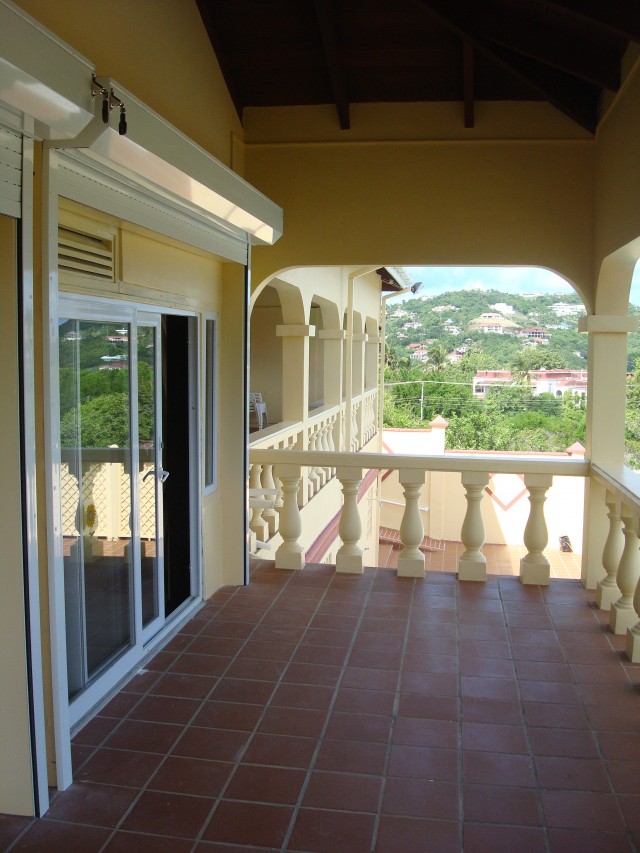

Rolling Shutters

Rolling Shutters' design allows each slat to roll-up inside its housing capacity. The result is an attractive look, an important consideration for home and business exterior appearance. Each shutter is customized and made to fit. Aluminum slats are filled with hard resin or extruded aluminum for tougher applications. The blades are vented to allow in air and light.

Rolling Shutters can be motorized with a manual override system in the event of electrical failure. Remote control is also available. Caribbean Awning also uses shutters as interior security for open bars, garage type applications and security for store fronts.

Max Slat Span 288"
Max Design Pressure 200 PSF
Design & Tested in accordance with the Florida Building Code Sixth Edition
Tested to TAS 201 / 202 / 202 / & ASTM E 330 / E 1886 / 1996 Standards
Impact Level D = 9lb Large Missile Impact
All extrusion shall be 6063-T6 aluminum alloy unless noted otherwise
Vented, Solid and Viewport Slats available

FEATURES

Provides excellent security
High Salt resistance - great for coastal areas
Powder coated for long lasting finish
Withstands winds up to 146 MPH
5 year warranty for side tracks, slats and hoods
1 year warranty on motors, electronic devices and moveable parts, under normal wear and tear conditions in the Caribbean
Sound and light control
Insulation from heat and cold
Privacy control
Easy operation from inside and outside the home
Slat sizes: 40mm, 55mm, 60mm
Easy to install on existing homes
Easy maintenance
Standard colour - white - other colours available

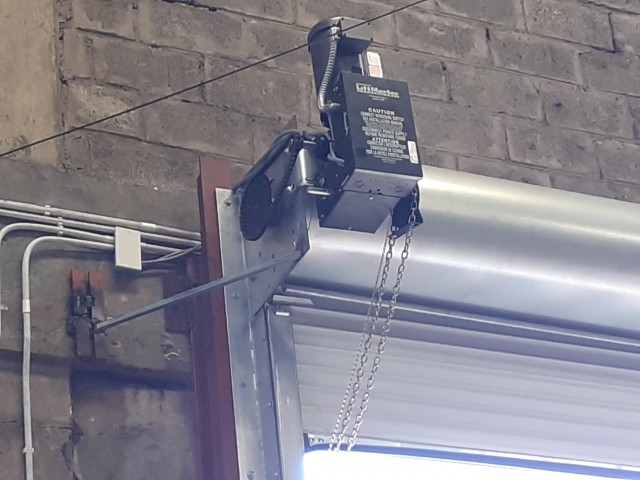

Caribbean Awning Production Company provides Motors obtained from SOMFY for motorizing all Rolling Shutters as well as Retractable Awnings.

Although SOMFY motors are designed for indoor and outdoor use, they must be protected from direct weather elements. The motors are equipped with a built-in thermal overload protector which limits their operation to intermittant use only.

Features

Remote Control
Indoor and Outdoor Key Switch
Digitel Key Pad
Manual Override
110 volts and 220 volts

Somfy Motors

Rolling Shutters can be installed on the outside or inside surface of the building or can be 'built-in". Be sure to provide the right measurements. Caribbean Awning Production Company Ltd cannot be held responsible for the incorrect measurements.

For recess Installation

Measure your width of the opening
Measure the height of the opening

When mounting shutters on the inside opening (recess) this is your Finished Size

For Surface Installation

Measure your width of the opening and add 8" to the opening width
Measure your height of the opening and add 13" to the height for a door or large opening and 10" for a window opening

When mounting on the outside of the opening (surface) this is your Finished Size

Note:
We must determine your Finished Size to avoid shutter size confusion.
In hurricane zones you may need a storm bar which is the width of the shutter. Ask for pricing.
Indicate type of opening (window or door) type of surface (wood or concrete)

Considerations

No custom shapes such as arches and angles
Require flat leveled surfaces for installation
Requires additional head space above opening for the hood
Exterior lights, plumbing pipes, air condition pipes, decorative banding around windows and doors, protruding door knobs should be considered when evaluating installations
Architects should include these shutters as a “built-in”
What side you require the motor installed – consider the side closest to your electrical outlet
Roll Up shutters have the highest initial cost but is practical, effective and easy to handle

Let us cover your world

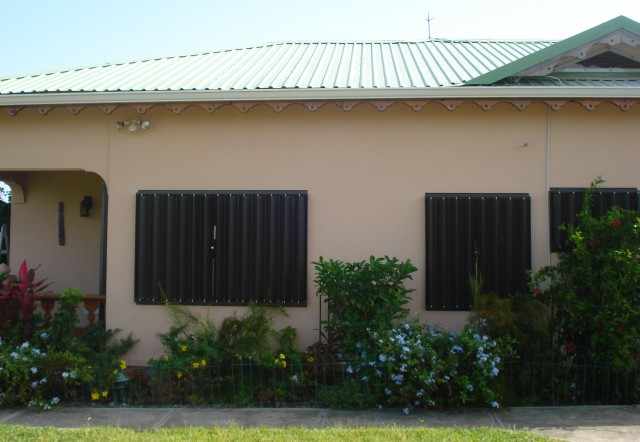

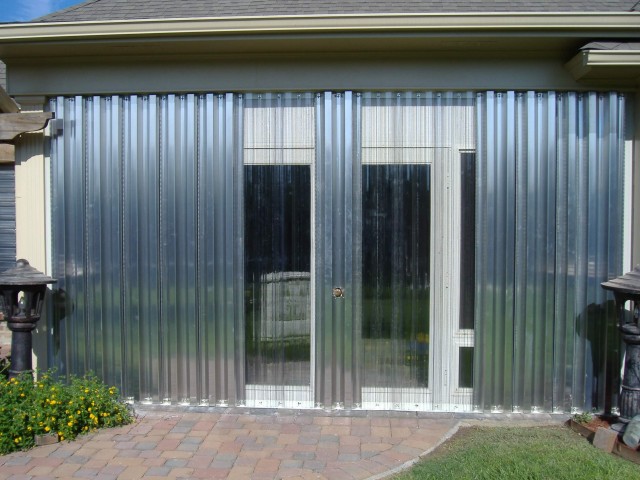

Storm Panels

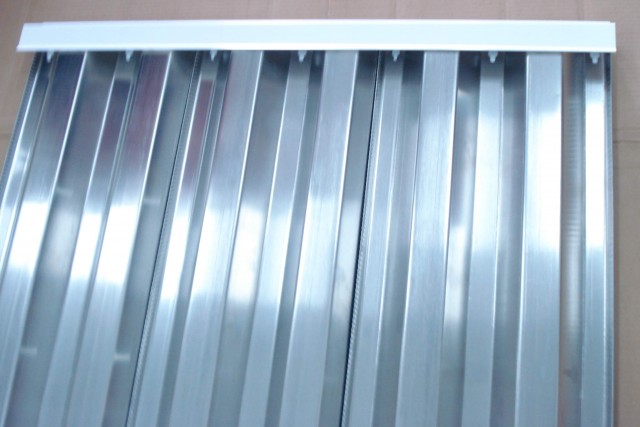

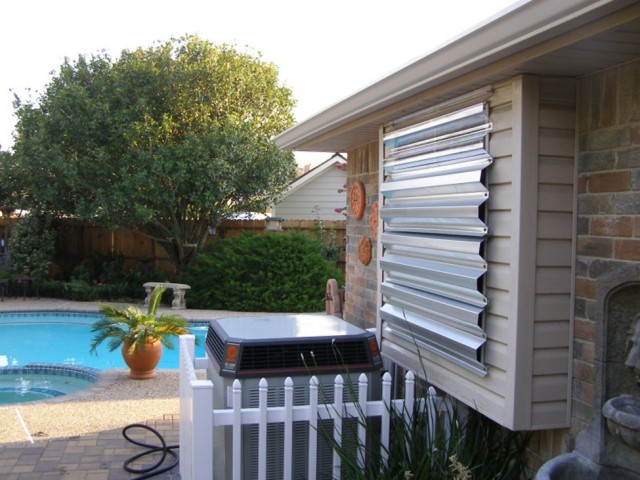

ALUMINUM PANEL

Description:

A cost effective means of storm protection made of .050″ light weight corrugated aluminum. These panels overlay one another as wide as needed with a maximum height of 12′ in some cases.

The most commonly used storm panel installation is Vertical mount, in which you need a recessed opening with a flat area around the window or door, with no obstacles.

The second kind of storm panel installation is Horizontal. This method is preferred when there is a sill protruding on the bottom of the window or doorways.

White Panel Upgrade – Our 550 series aluminum storm panel can be ordered in white as an upgrade.

Specifications:

Graphic Sample:

Application(s)	Outdoors
Security Protection	Yes
Hurricane Protection	Yes
Minimum Windspeed Rating	176 Mph
Impact Tested	Yes
Maximum Pressure	77 psf
Maximum Width (inches)	Unlimited
Maximum Height (inches)	120″
Lock	No
Motor	No

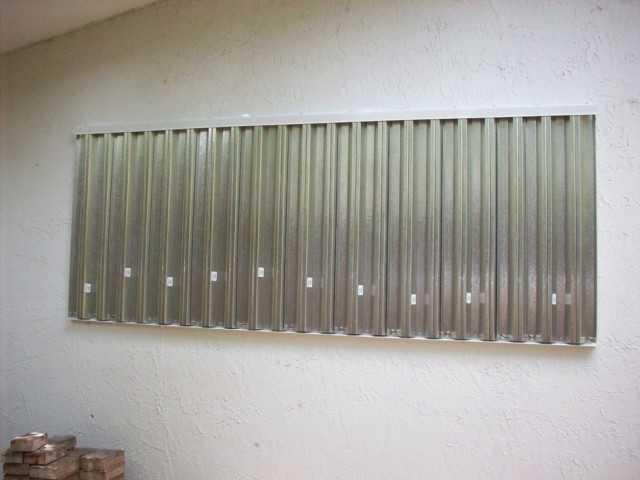

GALV. STEEL PANEL

Description:

A cost effective means of storm protection made of galvanized corrugated steel. These panels overlay one another as wide as needed with a maximum height of 8′ 6" in some cases.

Specifications:

Graphic Sample:

Application(s)	Outdoors
Security Protection	Yes
Hurricane Protection	Yes
Minimum Windspeed Rating	176
Impact Tested	Yes
Maximum Pressure	76 psf
Maximum Width (inches)	Unlimited
Maximum Height (inches)	102″
Lock	No
Motor	No

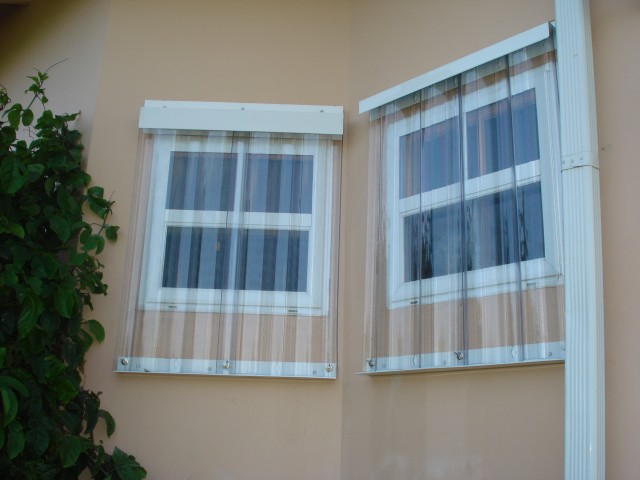

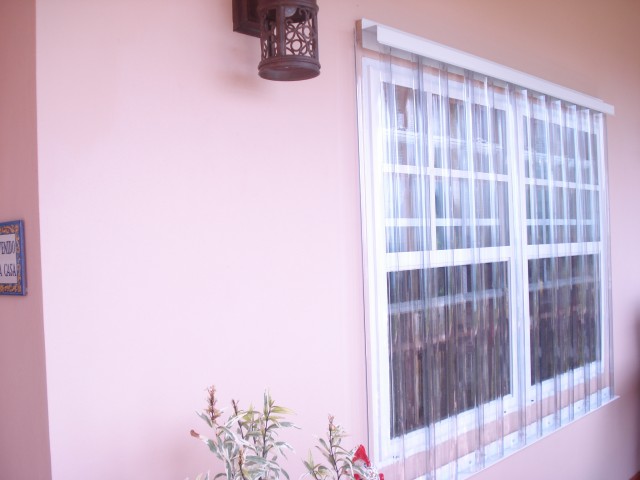

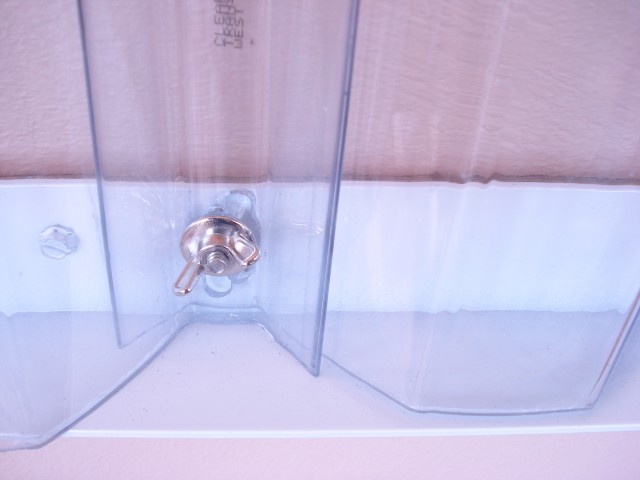

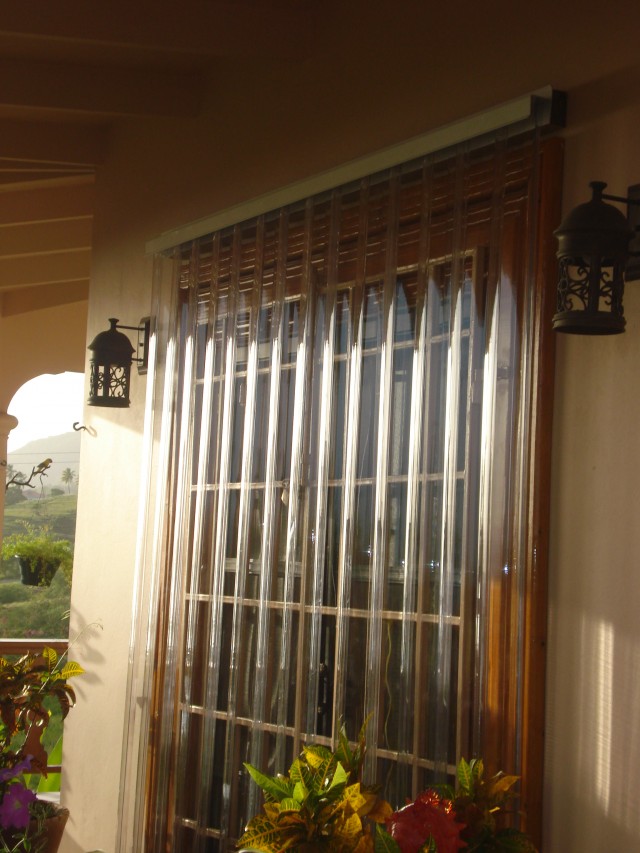

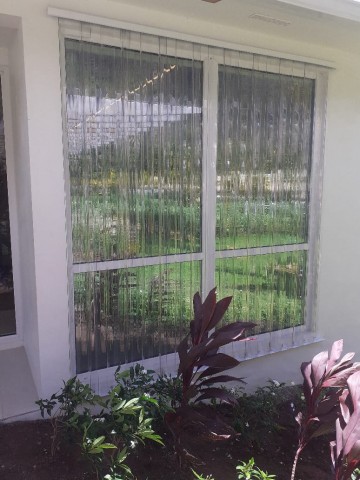

CLEAR LEXAN PANEL

Description:

Clear panels offer all the features of metal panels. You get the strength and protection plus you don’t get that closed in feeling. They are lighter than metal panels, easier and safer to install. They allow natural light and afford you and your family the protection you need. In many instances, depending on your situation, they may be left on the opening during the entire hurricane season.

Our 650 series panels are the highest-quality clear panels on the market.
These panels have been approved by the most stringent Miami-Dade and Florida Building Code missile-impact tests.

Specifications:

Graphic Sample:

Application(s)	Outdoors
Security Protection	Yes
Hurricane Protection	Yes
Minimum Windspeed Rating	146
Impact Tested	Yes
Maximum Pressure	60 psi
Maximum Width (inches)	Unlimited
Maximum Height (inches)	77″
Lock	No
Motor	No

FEATURES

Panels that interlock in approximately 12" increments
Panels are available in a variety of gauges
Clear panels allows light and visibility
Tracks are available in white
Simple and easy installation
Unlimited widths
Heights to 12’
Can be installed vertically or horizontally

Considerations

Available in aluminum and clear polycarbonate
Not the most attractive product
Time consuming to put up and take down
Storm Panels when not in use must be stored
Must have easy access to the windows on the outside
Operation from outside of the Building
Ensure no obstructions to allow for smooth installation
Require extension ladders for second and third floors

Always measure width by height

Measure the inside width from left to right
Measure the inside height from top to bottom (indicate if it is a door or window)

Let us cover your world

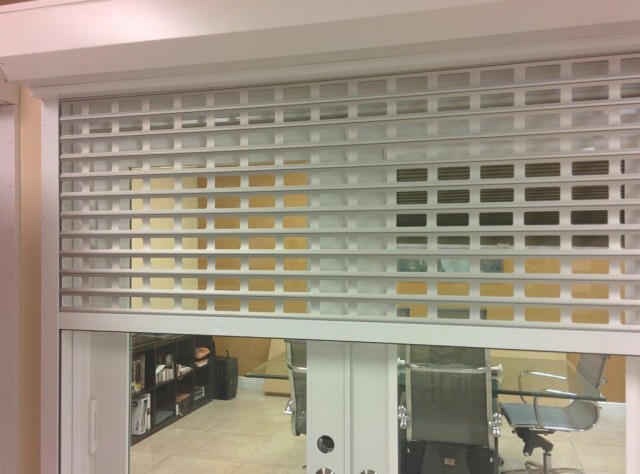

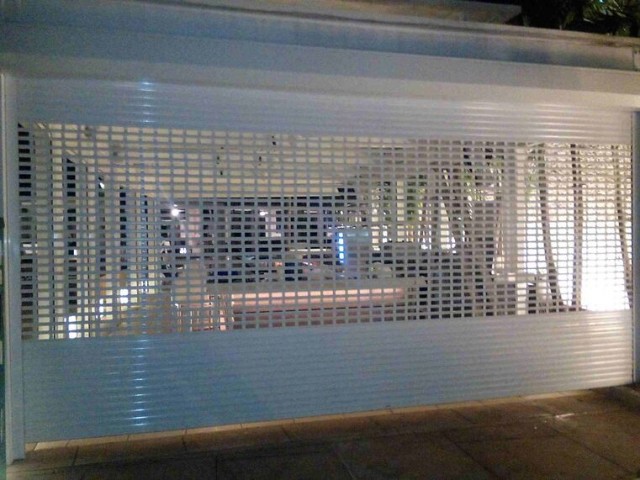

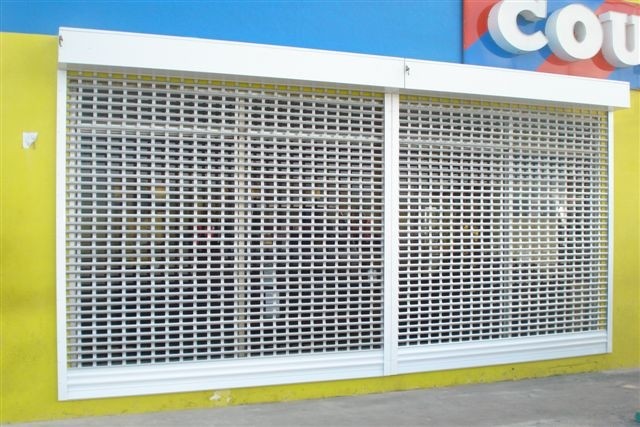

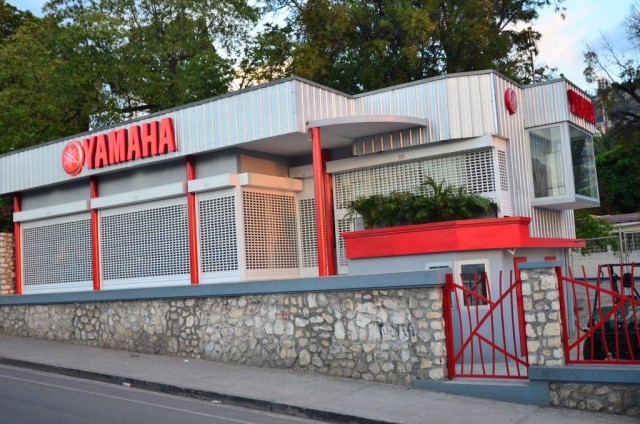

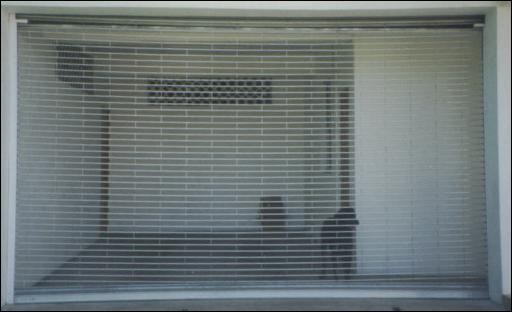

Chain Link Shutters

Perforated coiling security shutters also known as Grill Rolling Shutters, offer a clean, uncluttered view that maintains a high level of security while eliminating the claustrophobic effect of being “closed-in”. The perfect solution for business premises where added security is needed. There is a choice of either grilled or solid slats. The grilled finish is a great choice for display windows as they allow for perfect visibility of your goods on display, while the solid finish can be used as the optimum security solution for commercial units. These steel doors can also be fabricated with your choice of an electrical motor or manual operation, or both. Typical applications included: storefronts, office windows, shopping malls, display cases, ventilated areas and many more applications.

Always measure width by height.

For Surface Installation:

Measure your width of the opening
Measure your height of the opening
Send a photo of the area

Considerations:

Concrete, masonry frame construction must be smooth and level
Motor or chain operation
Ability to secure from inside & outside
Location of the motor – right of left- inside or outside

Features:

Motorized only with chain
22g 4” galvanized steel slats
Flat slats
Aluminum bottom bar
Brackets 13g steel
Heavy duty aluminum or galvanized side tracks
Hood 24g galvanized steel
5/16” steel rods for grille finish
2” aluminum links
Bottom locks

Let us cover your world

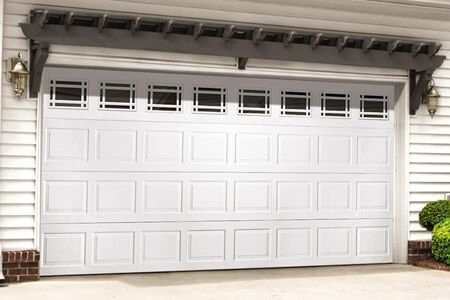

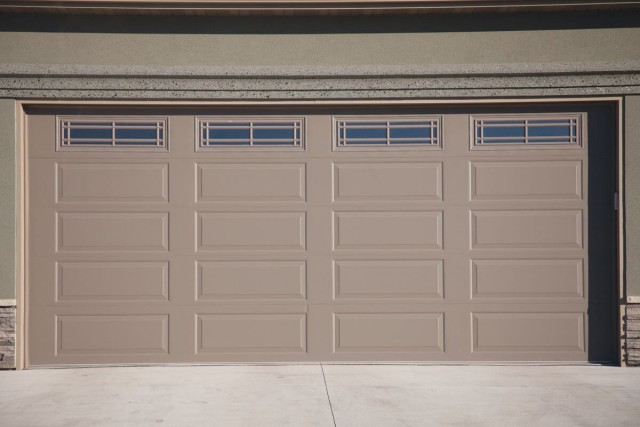

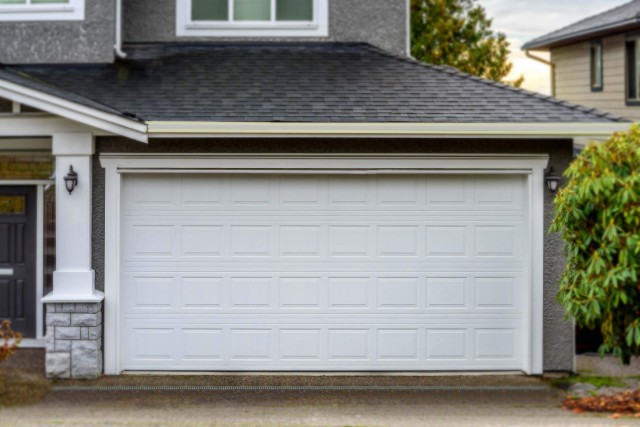

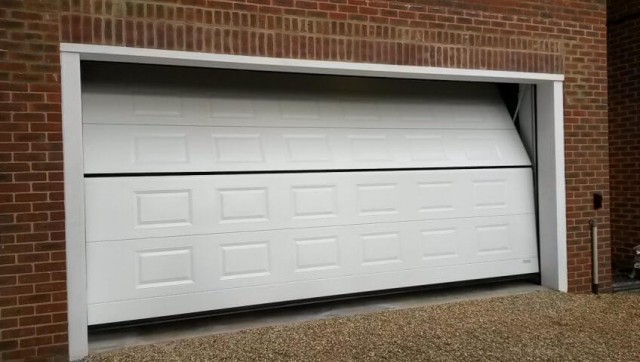

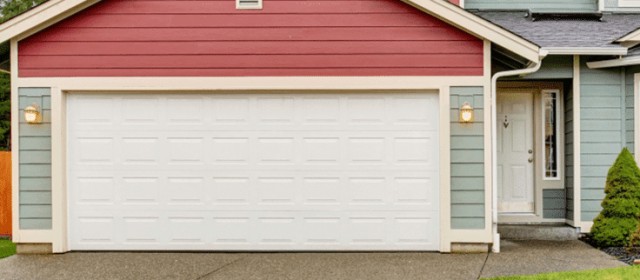

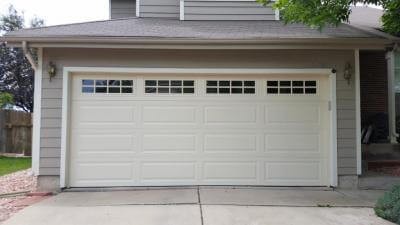

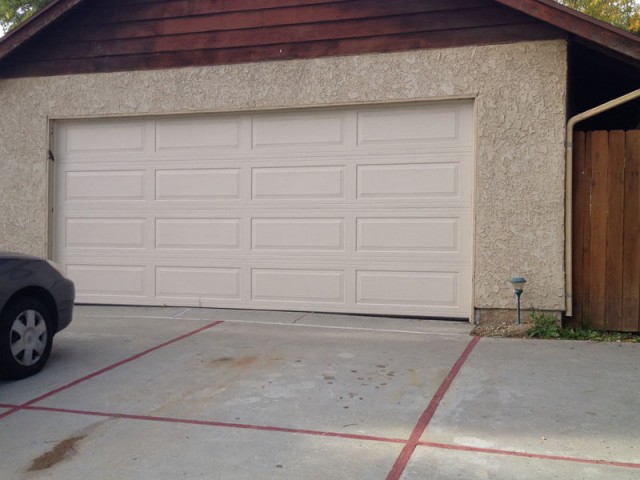

Garage Doors

Whether you are a new homeowner looking to personalize your home or you need to replace your existing garage door, Caribbean Awning makes it easy to find the right choice for your home. Your garage door can account for up to 30% of your home’s façade, so choosing the right style can have a great impact on your curb appeal. Our doors are available in a variety of styles and colors, woodgrain finishes, materials and hardware to complement your home’s exterior.

Let us cover your world

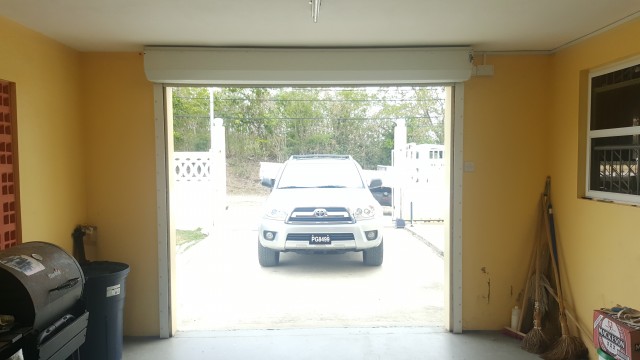

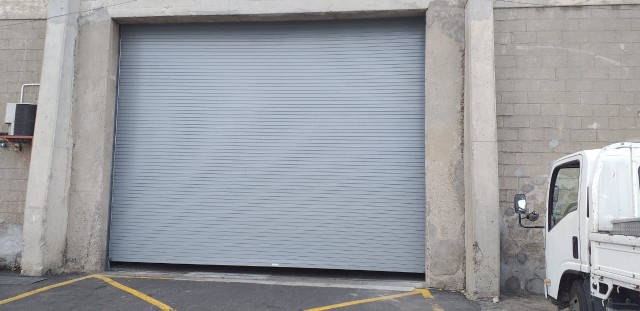

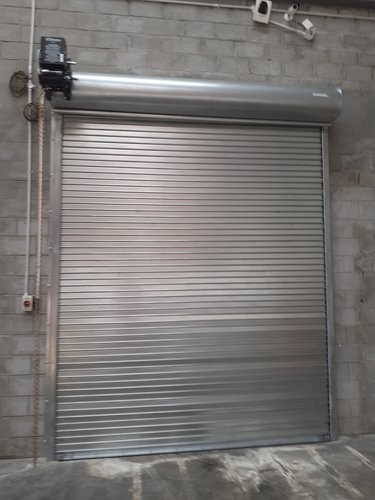

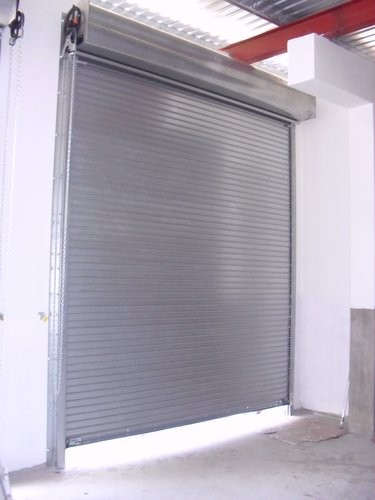

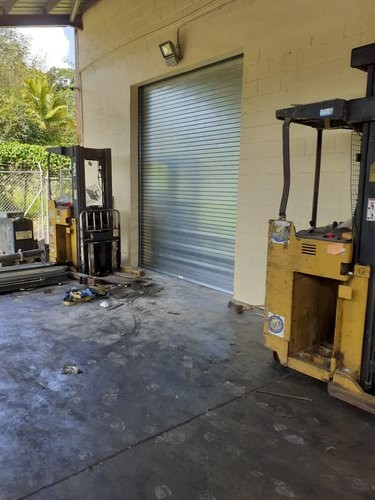

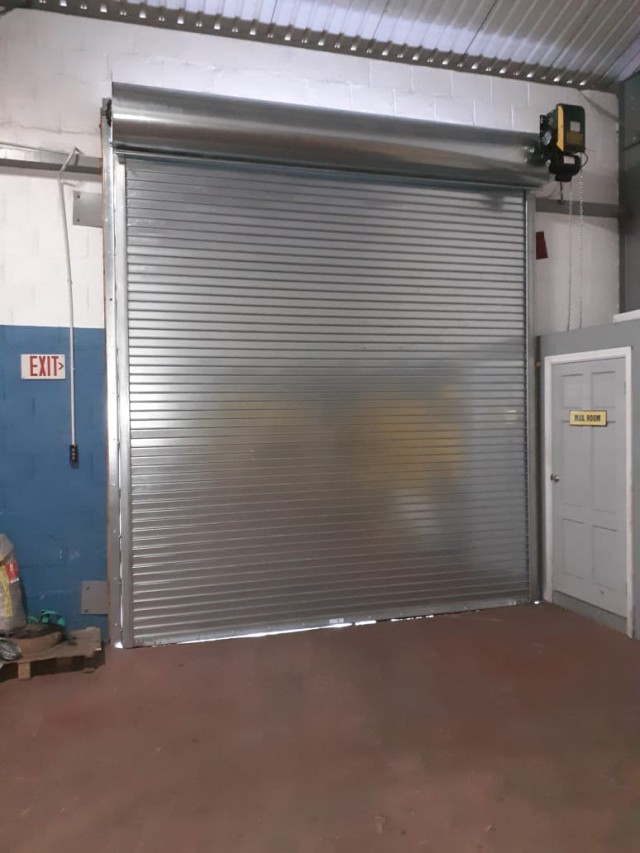

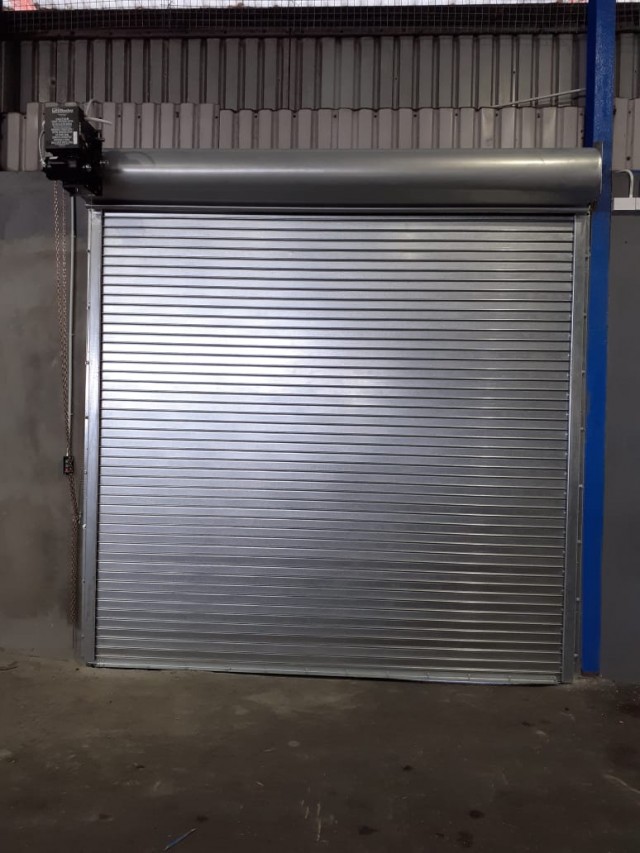

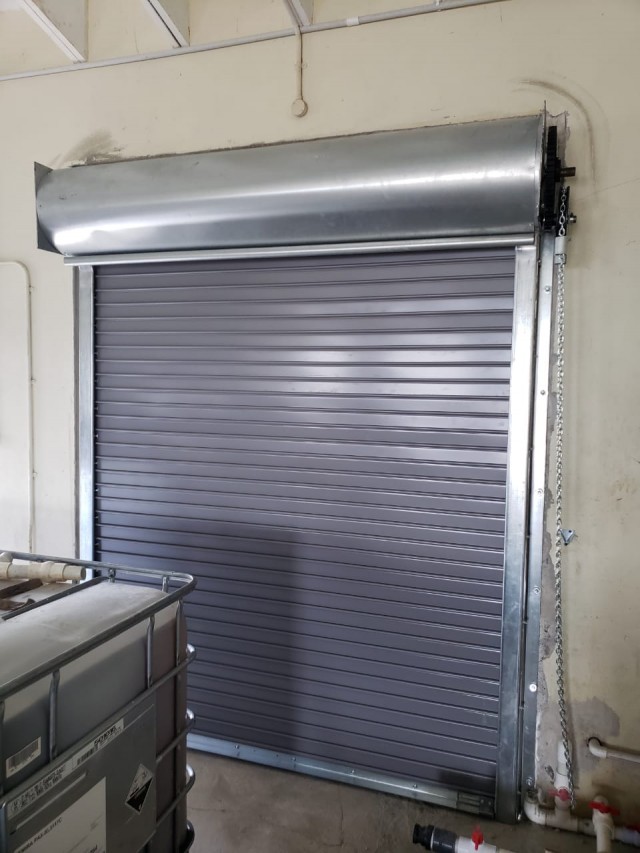

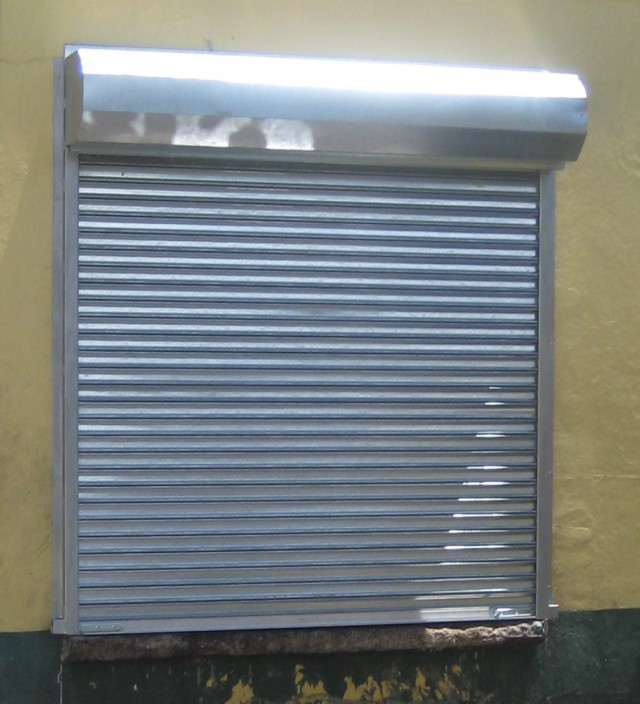

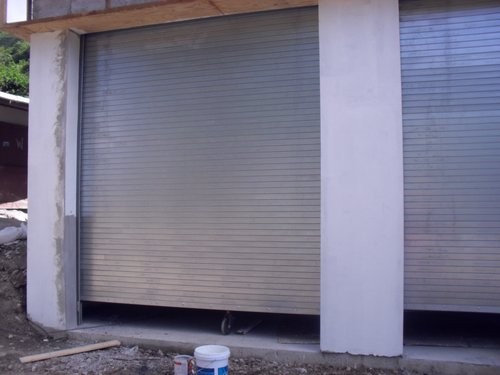

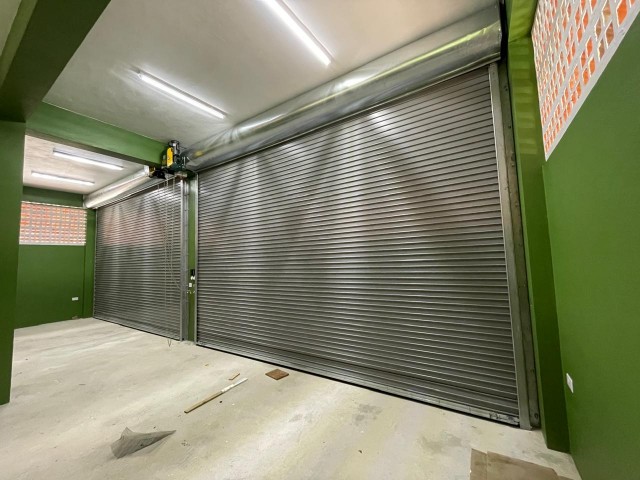

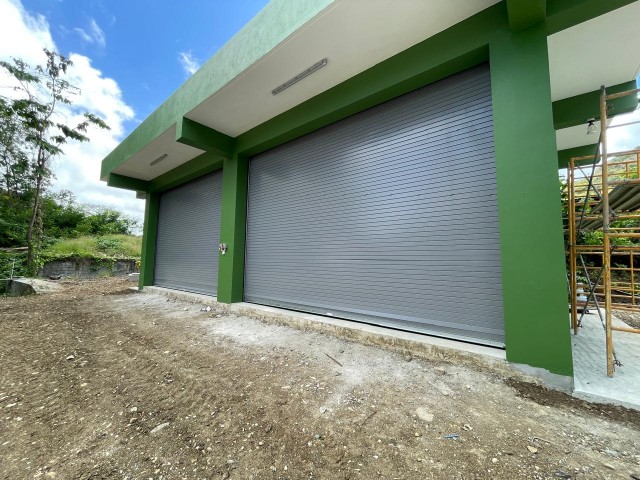

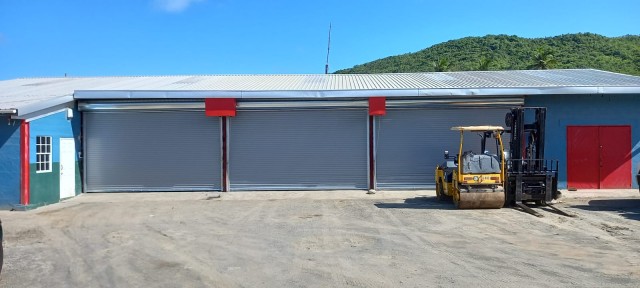

Roll Up Steel Doors

Solid slat rolling doors are an economical, yet reliable means of protection against the elements, while providing the utmost in security. This rolling door is available in a variety of gauges and finishes, in steel or aluminum. Perfect for Loading Docks, Warehouse Facilities, Exterior Storefront Protection and more.

Wind Code rating available for high wind pressure, impact and fatigue resistance in high velocity hurricane zones. Our doors are Dade-County approved for Hurricane Rated, High Wind Velocity applications up to 175 MPH and are available for large opening widths of 60’ – 0” or as small as 2’ – 0” wide. The Available Finishes: Standard finishes in Galvanized, Primed Grey, and Primed White. Powder Coating finishes available upon request at an additional cost and

Mill and Anodized finishes for aluminum parts available upon request at an additional cost.
