Awnings

Let us cover your world

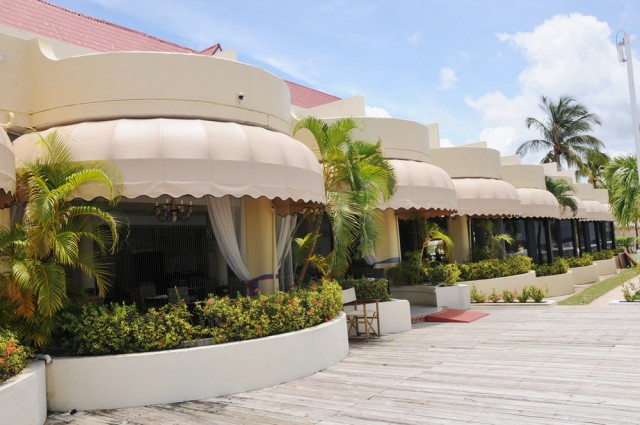

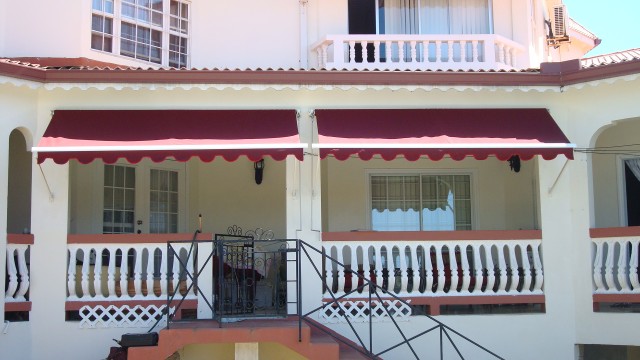

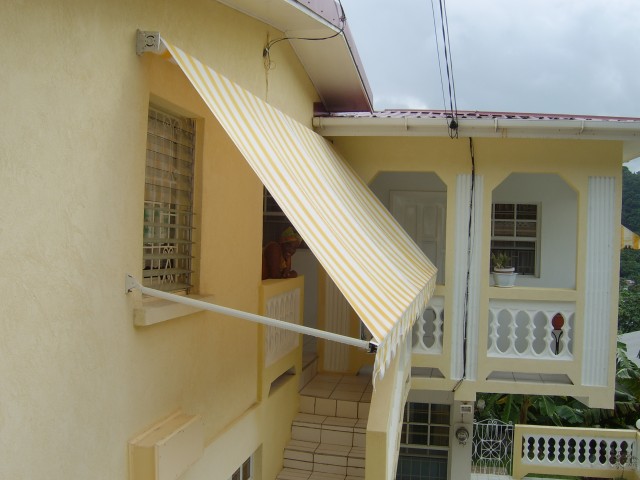

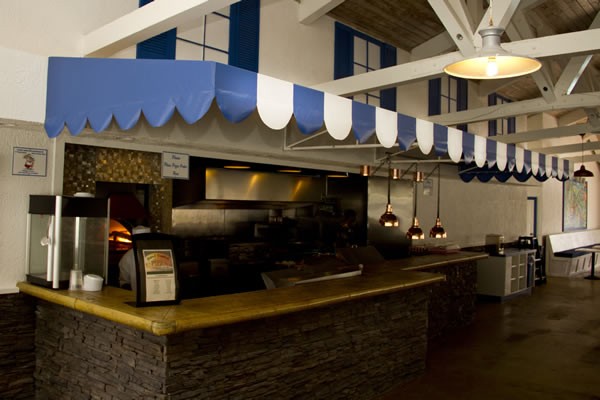

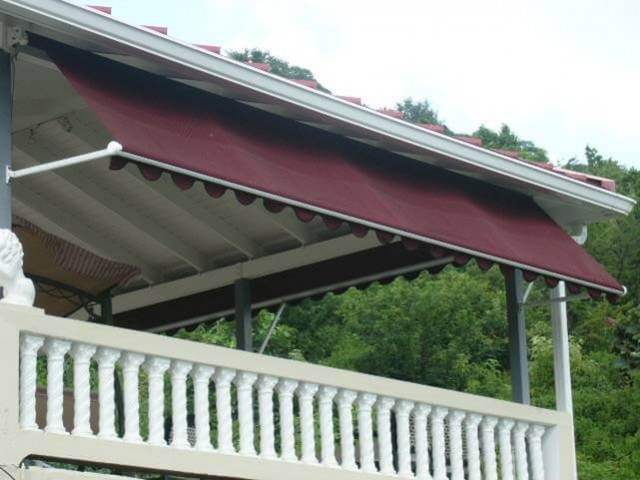

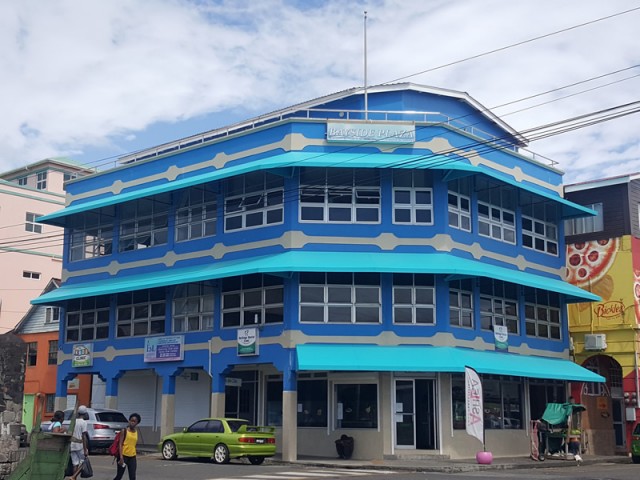

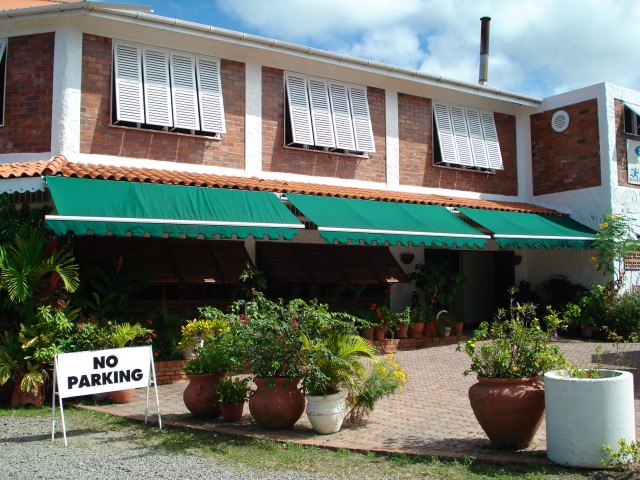

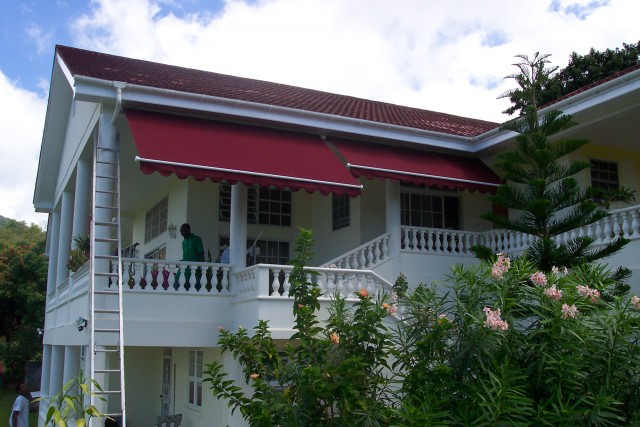

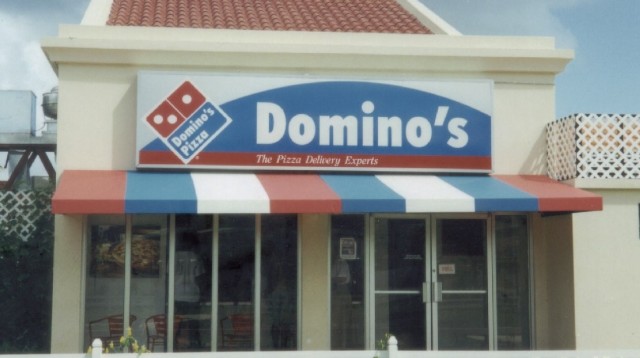

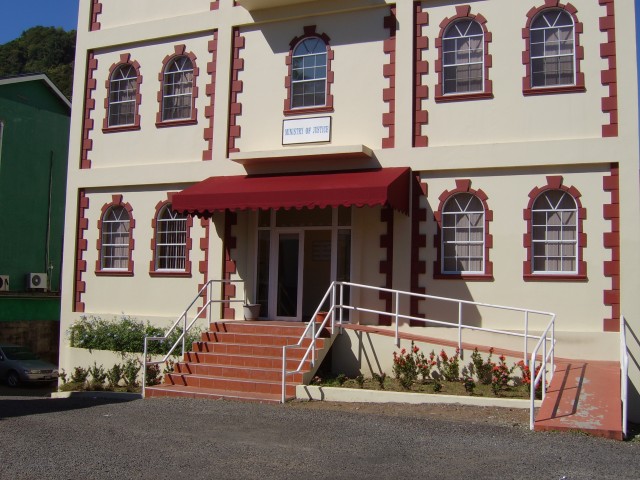

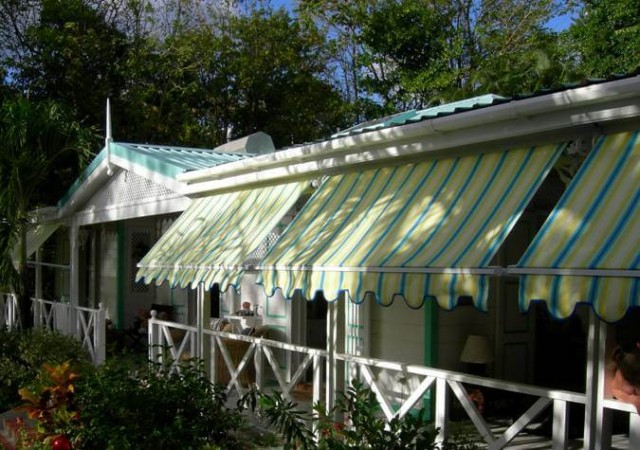

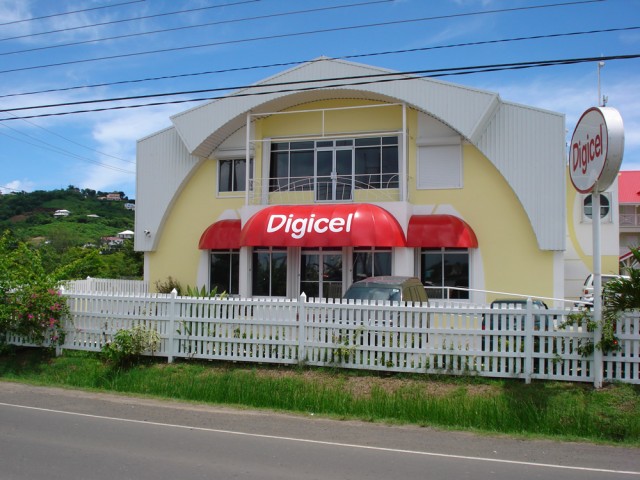

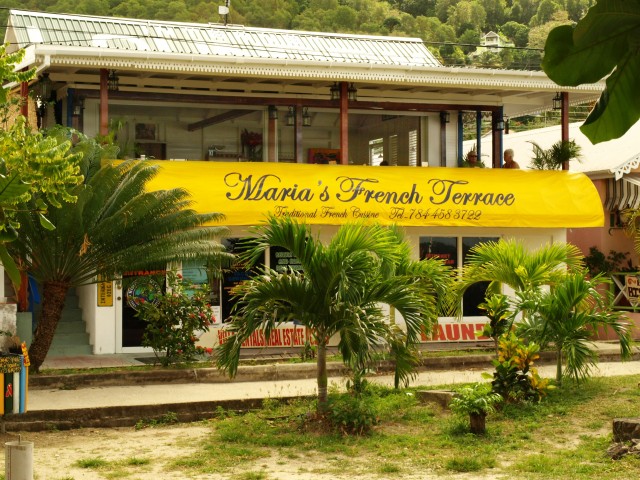

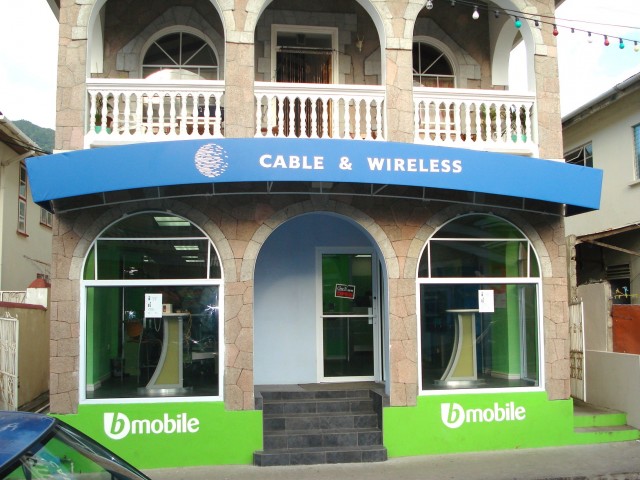

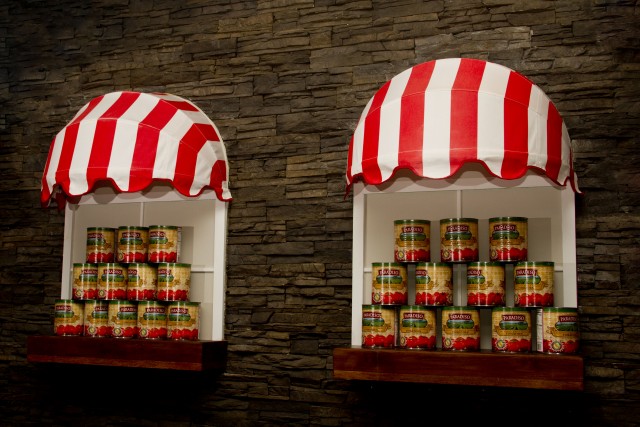

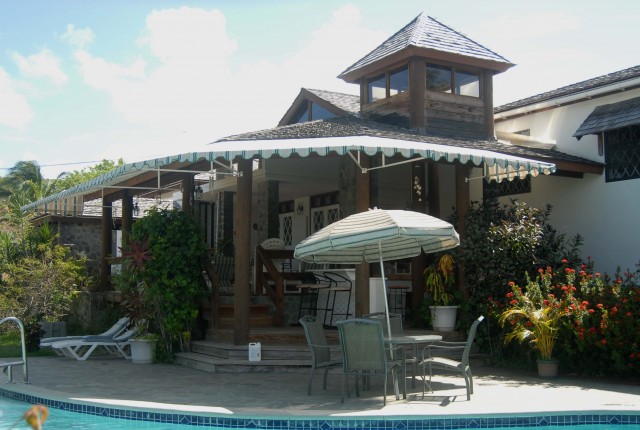

Fixed Frame Awnings

Awnings and Canopies are customized for the client. They are functional, economical, strong and stable. Most of our awnings and canopies consist of fabric stretched over and secured to a fixed galvanize steel frame secured by expansion bolts or laces. The frames are welded and with large awnings they are bolted together to make a single frame.

The Professional Awning Manufacturers Association (PAMA) has adopted standard names for awning and canopy styles and we outline the designs below:

MORE

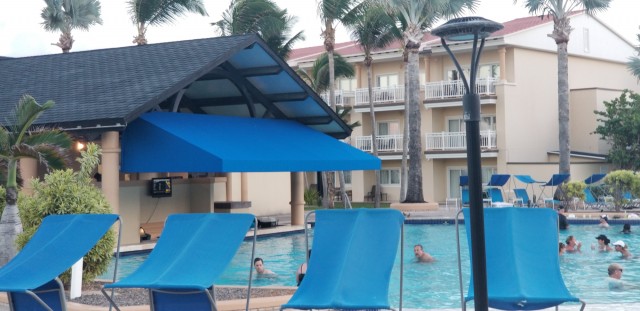

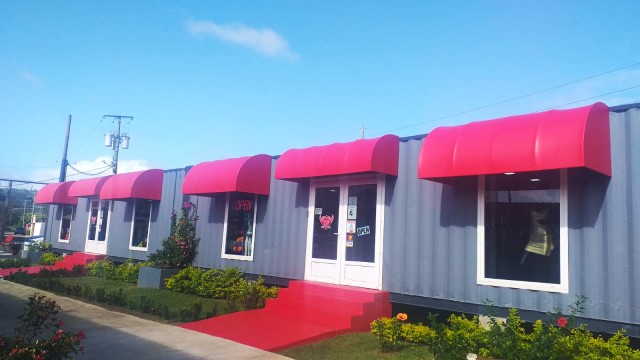

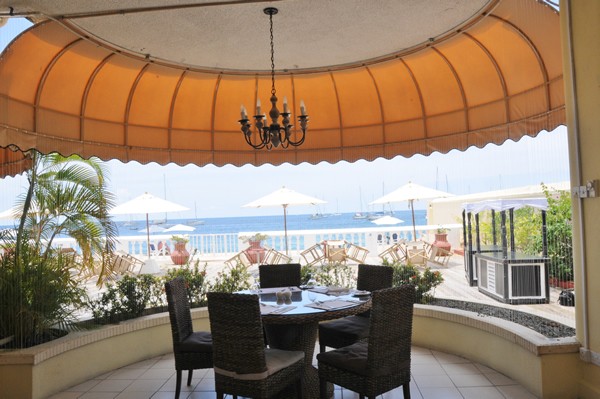

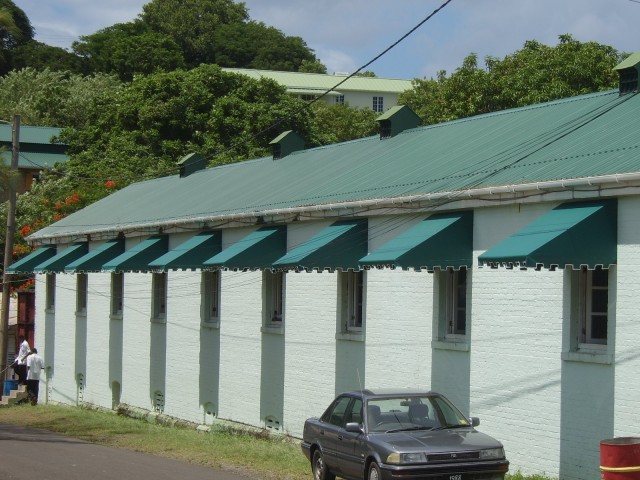

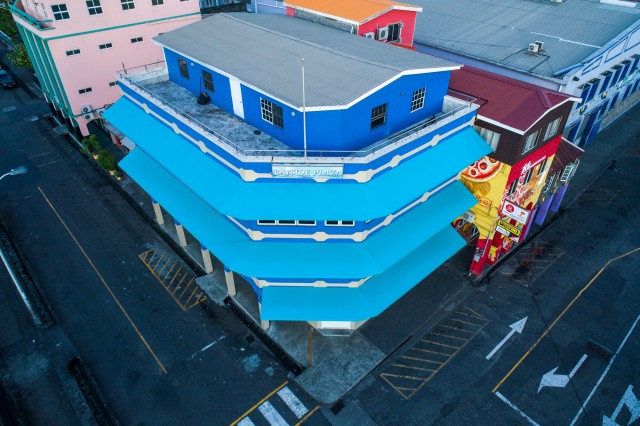

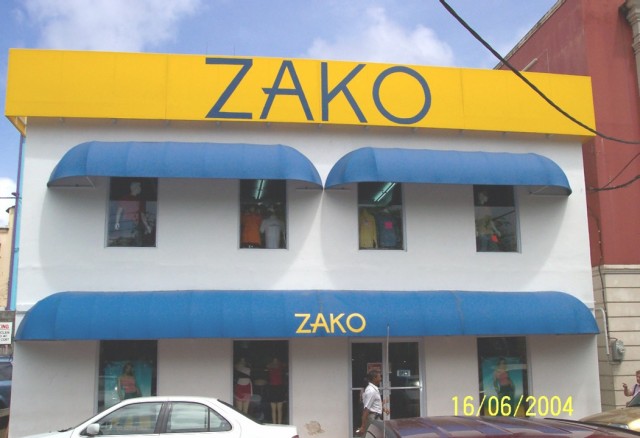

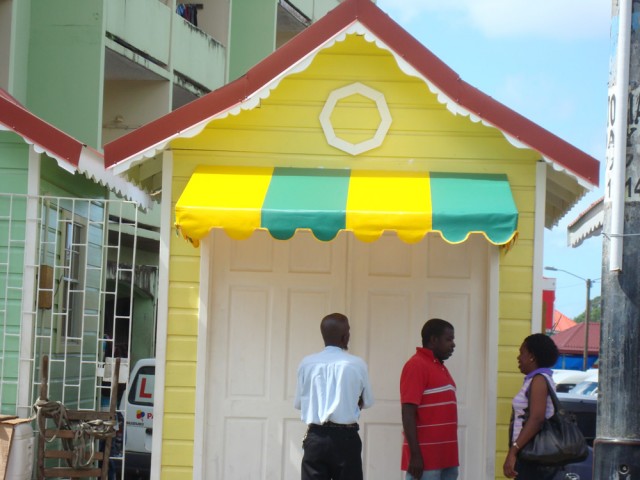

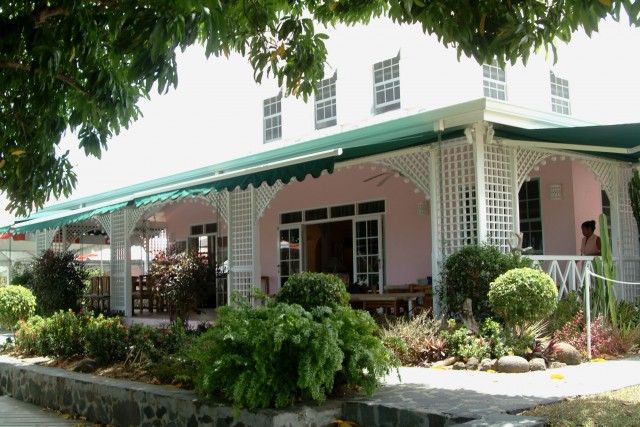

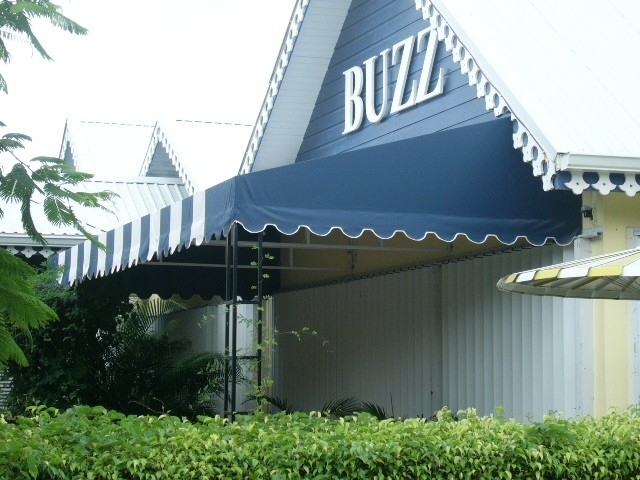

Fixed Awnings & Canopies

VARIETY OF AWNING SHAPES


VARIETY OF AWNING FABRIC

FABRIC TYPES FOR AWNINGS, CANOPIES & TENTS

Sunbrella or Dickson
100% Solution Dyed Acrylic
Exclusive fluorocarbon finish
Water repellent
Resistant to Ultraviolet rays
Mildew resistant (if maintained and cleaned)


Vinyl Laminated Polyester Awning Fabric
Resists acid rain and air pollution discoloration
Exceptionally Smooth surface
Certified Flame Resistance by California State Fire Marshall


Dickson Nite-Lite
For Back-Lit awnings and Sign Fabric
Vinyl Laminated Polyester Scrim
White underside for illumination
Ease of cleaning
Flame retardant


Firesist
Fabric woven from inherently fire retardant polymer,
Backed with a durable urethane/acrylic coating
Very resistant to Ultraviolet rays
Water repellent
Excellent mildew resistance (if maintained and cleaned)

   Sunbrella
   Sattler-Corp
   Sattler-Ag

VARIETY OF VALANCE STYLES

VALANCE / SCALLOP

There are different styles of valances for all awnings and canopies. Calderon #1 and Caribbean #2 are the most popular styles but you can choose any style you wish. The valances can be 8", 10" or 12" long as required. The awning valance comes with a ¼" binding. There are various biding colours from which to choose.

The Awning valance is easily removable on retractable awnings by removing the end cap and pulling the fabric out.

There is no additional cost for awning valance.

Measure the Width of the Window/Door from the inside left to inside right. Add 6” on either side of the awning: so add an additional 12” to the inside awning width to obtain your finished awning width.

Measure the drop of the window from the mounting point to the centerline of the window. The projection is the same as the drop. This represents the measurement for surface installation. For Recess Installation, measure the inside width from left to right and the drop from the mounting point to the centerline of the window. The projection is the same as the drop.


Regular projections are the same measurement as the drop; 36” or 48”; however you have to take into consideration the direction of the sun and rain and the style of the awning. For a dome, the drop and projection must be the same as the width.





For a Canopy measure the projection the length of the landing or open area that requires to be covered.

Considerations

  • The surface(s) should be level and flat – check the type of surface to which the awning will be attached to
  • The type of window/door - opening in or out
  • When measuring please consider all down pipes, air condition pipes, light fixtures, molding etc. that may affect your installation.
  • The purpose of the awning
  • The type of installation – recess or surface
Let us cover your world

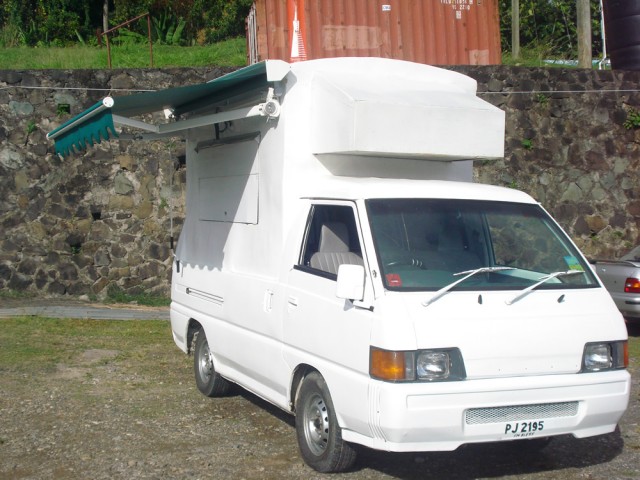

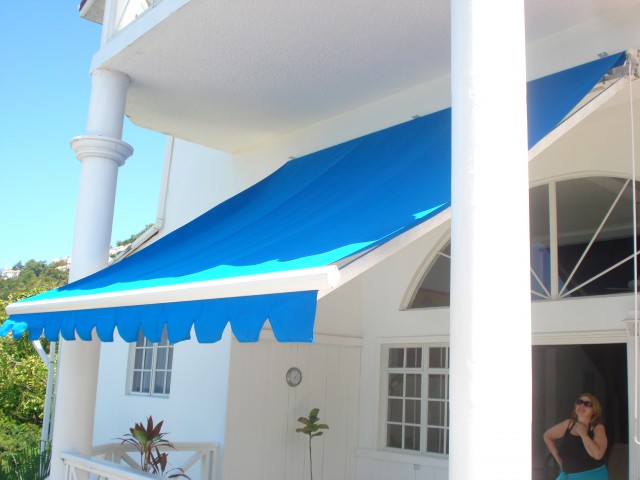

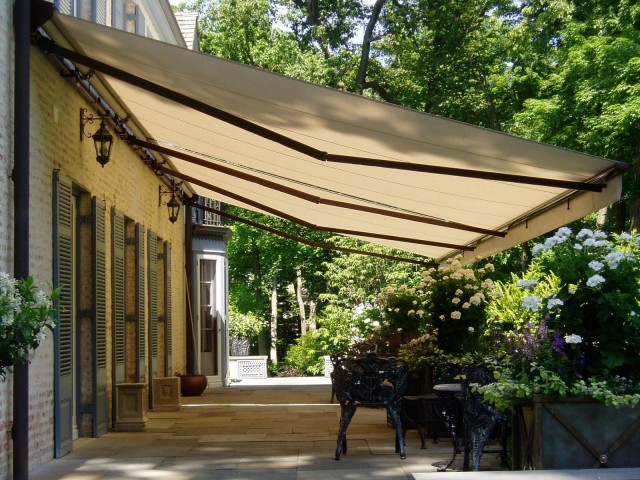

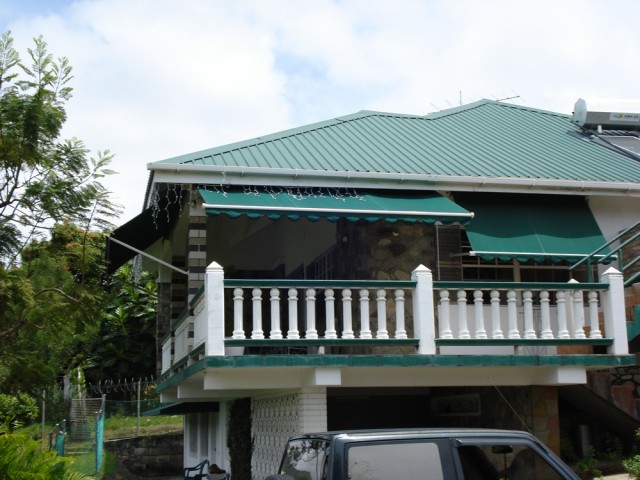

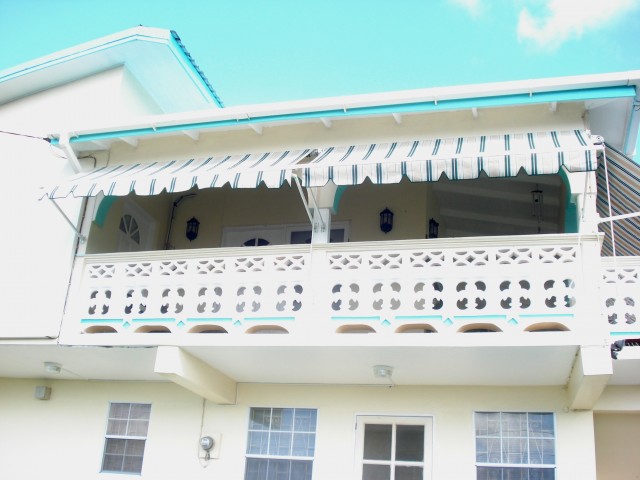

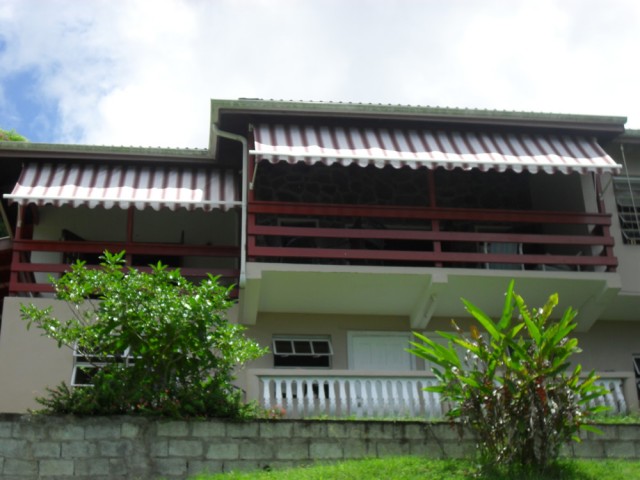

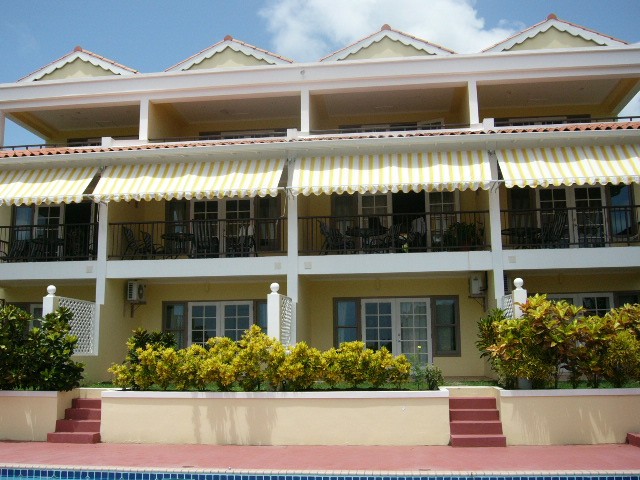

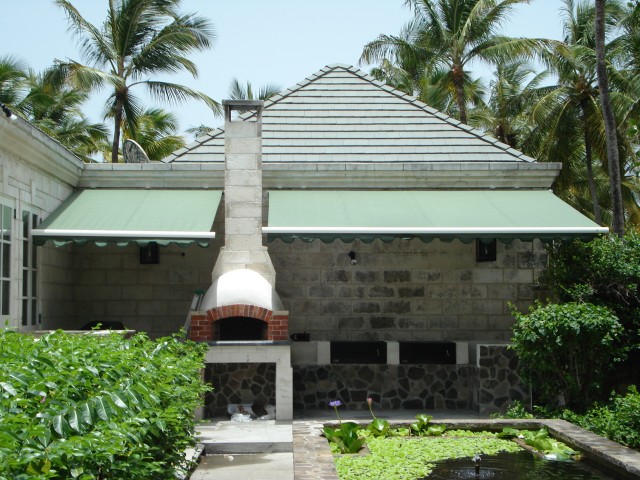

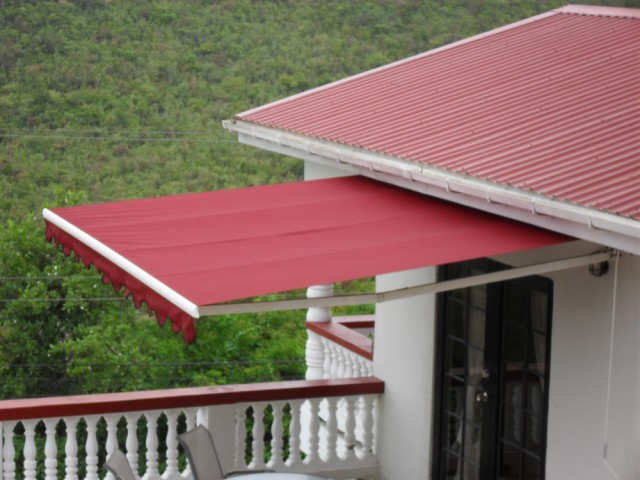

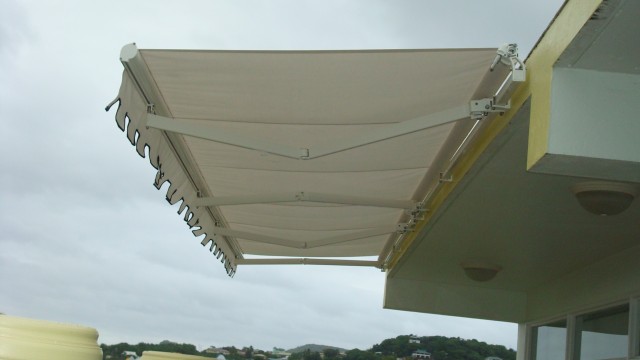

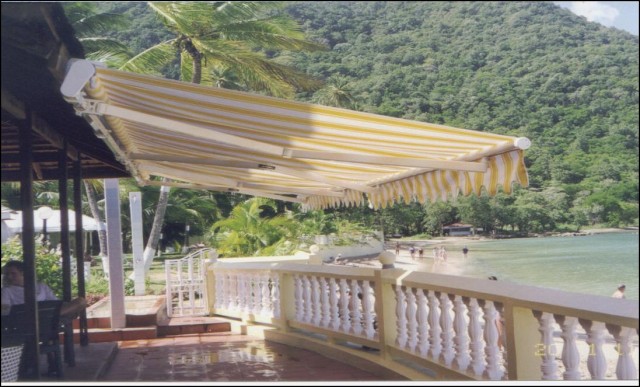

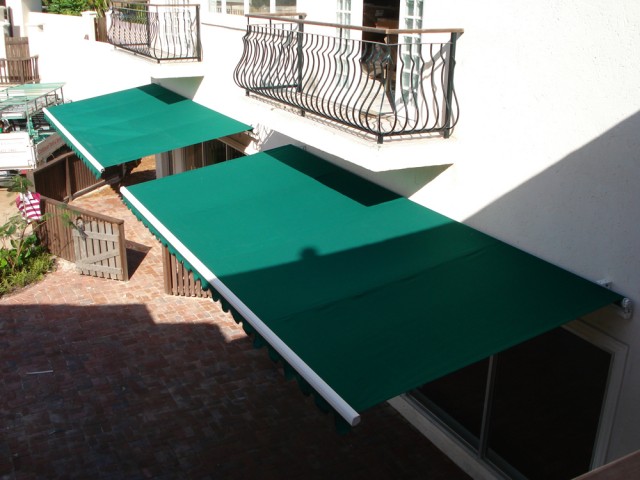

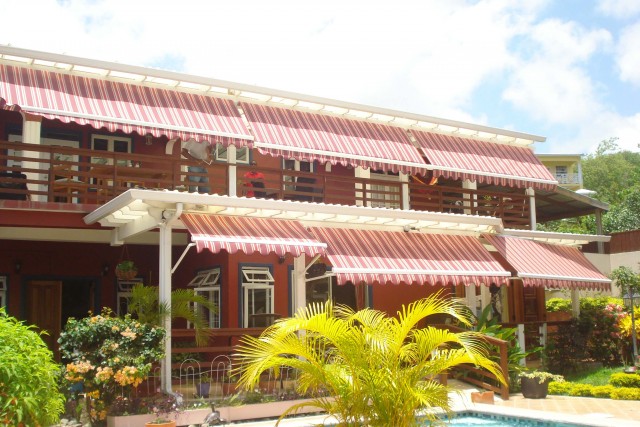

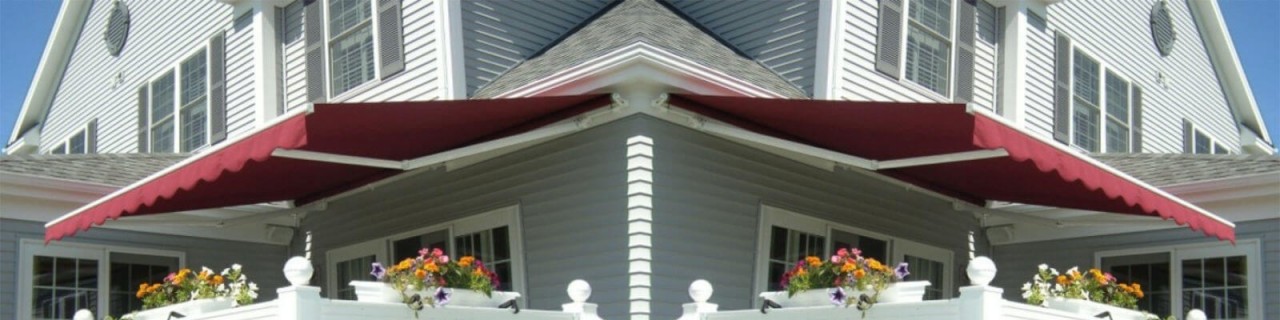

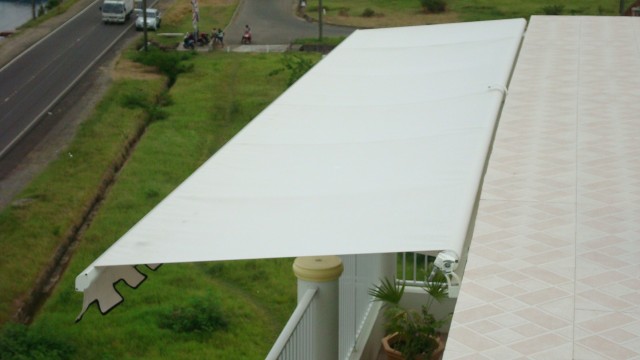

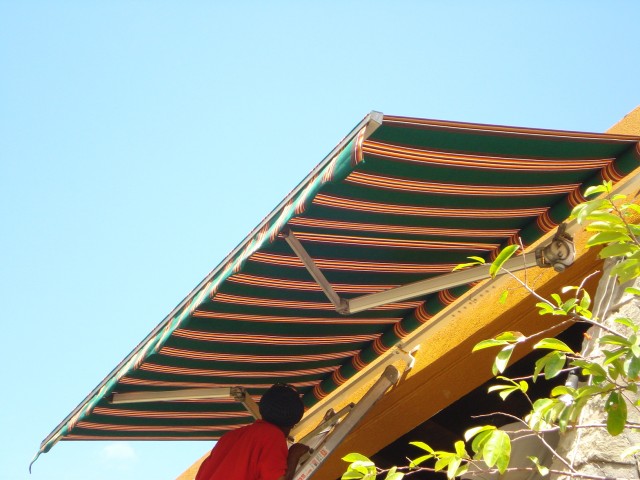

Lateral Arm Awnings

An elegant and economical way of providing shade and comfort when you need it. These awnings can be extended or retracted and has a variety of applications including: patios, courtyards, interior/exterior gardens, balconies, and decks.

Lateral Arm Awnings can be manually operated, motorized, remote control or have a sun and wind sensor which allow the awnings to extend automatically once the sun reaches a certain position. When not in use it is self-storing.





MORE

FEATURES

  • Adjustable angle control
  • Retractable arm include stainless steel chain hinge for maximum durability
  • Shafts and cables are produced from non-corrosive materials
  • Brackets and roller tubes are made of heavy-duty extruded aluminum
  • Various styles of mounting bracket options allow for installation flexibility
  • Aluminum hood offers protection against the elements
  • Operated by manual gear and hand crank
  • Warranty - hardware and fabric is guaranteed for five years against defects in craftsmanship and materials under normal wear and tear conditions.
  • The awning hardware is maintenance free
  • Fabric can be either 100% woven acrylic or PVC coated and come in a variety of colours
  • Awnings can be motorized

Lateral Arm Awnings

  • Manual Operation with Hand Crank or Motorization
  • Motors 110 volts or 220 volts
  • Sun and Wind Sensors
  • Remote Control
  • Variety of Fabric
  • Variety of Valance Styles



FABRIC TYPES FOR AWNINGS, CANOPIES & TENTS

Sunbrella or Dickson
100% Solution Dyed Acrylic
Exclusive fluorocarbon finish
Water repellent
Resistant to Ultraviolet rays
Mildew resistant (if maintained and cleaned)


Vinyl Laminated Polyester Awning Fabric
Resists acid rain and air pollution discoloration
Exceptionally Smooth surface
Certified Flame Resistance by California State Fire Marshall


Dickson Nite-Lite
For Back-Lit awnings and Sign Fabric
Vinyl Laminated Polyester Scrim
White underside for illumination
Ease of cleaning
Flame retardant


Firesist
Fabric woven from inherently fire retardant polymer,
Backed with a durable urethane/acrylic coating
Very resistant to Ultraviolet rays
Water repellent
Excellent mildew resistance (if maintained and cleaned)

   Sunbrella
   Sattler-Corp
   Sattler-Ag

VALANCE / SCALLOP

There are different styles of valances for all awnings and canopies. Calderon #1 and Caribbean #2 are the most popular styles but you can choose any style you wish. The valances can be 8", 10" or 12" long as required. The awning valance comes with a ¼" binding. There are various biding colours from which to choose.

The Awning valance is easily removable on retractable awnings by removing the end cap and pulling the fabric out.

There is no additional cost for awning valance.



Measure the height of the wall when Installing your awning. The most important requirement when measuring is the height. Ensure that there is enough space when the awning is extended for someone to walk under. Additionally keep in mind that the pitch of the awning should be at least 18 degrees.

The minimum height is 7’10” (to the bottom of the mounting bracket)

Measure the width of the awning from left to right based on the customers needs. Ensure that you have at least 8 inches of clear, unobstructed space where the awning will fit against the house. If placing the awning on the fascia board, the fascia board should be no less that 8” wide and should be well anchored to hold the awning.

Regular Width: 7’10”, 11’7”, 15’4”, 19’1”
Regular Projection: 8’, 10’, 11’6”

01001

Considerations

  • The height required when positioning between two points
  • Without a hood – 7’ 7/8” – with a hood 8’7/8”
  • A hood is not necessary if there is an overhead or soffit – the size of the hood is 2” larger than the awning itself
  • Remember the fabric is narrower than the total width of the awning
  • The width depends on the available space and the needs of the Customer - 6” on each side
  • The surface(s) should be level and flat – check the type of surface to which the awning will be attached
  • If motorized, on what side do you want the motor depending on where the electrical source is located
  • We recommend motorization if the awing is over 7ft wide and 8ft projection
  • When measuring please consider all down pipes, air condition pipes, light fixtures molding, etc. that may affect your installation.
  • The type of installation, recess or surface
Let us cover your world

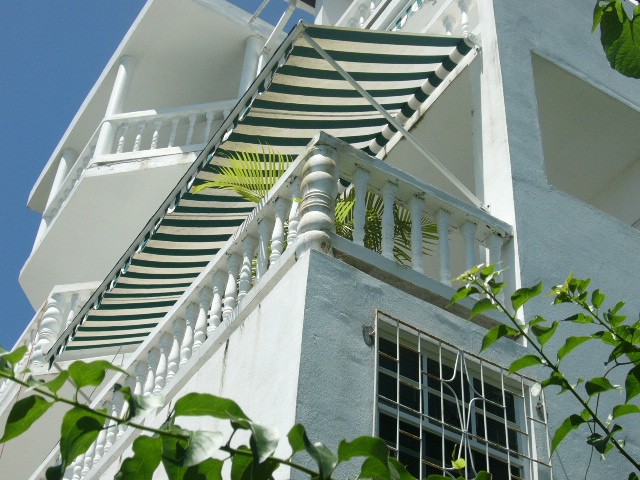

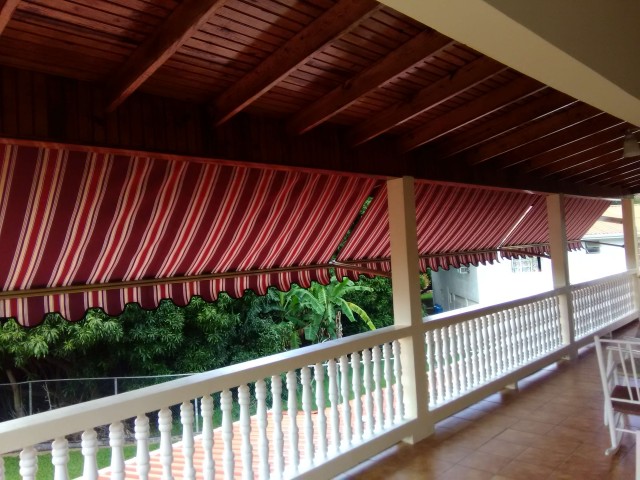

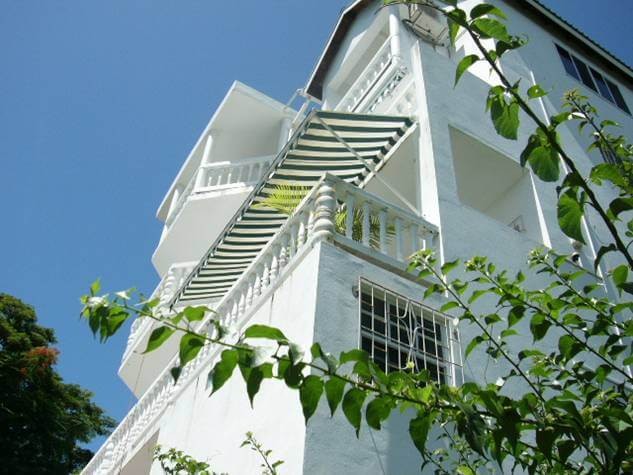

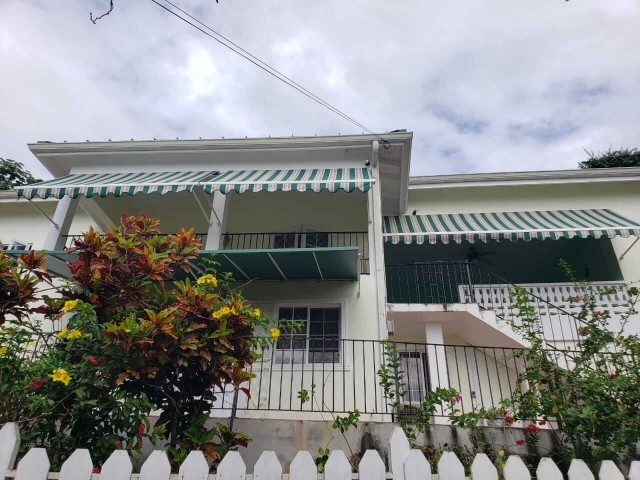

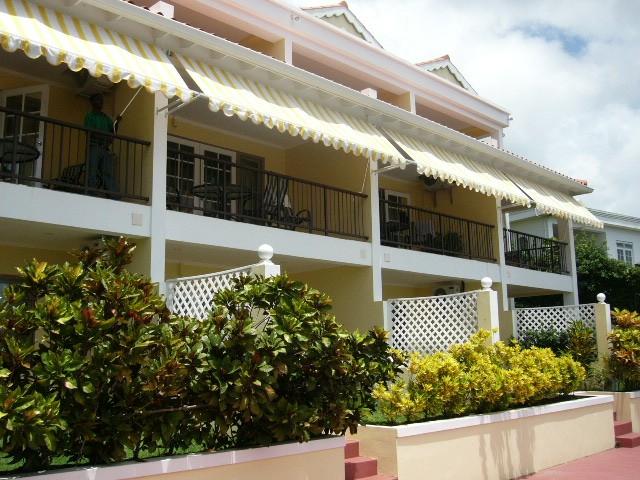

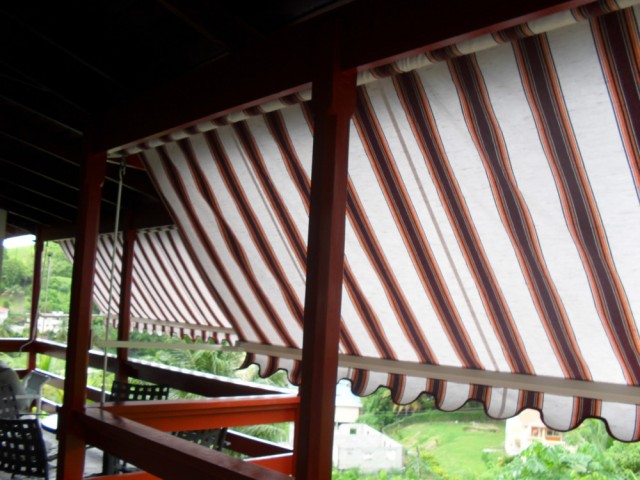

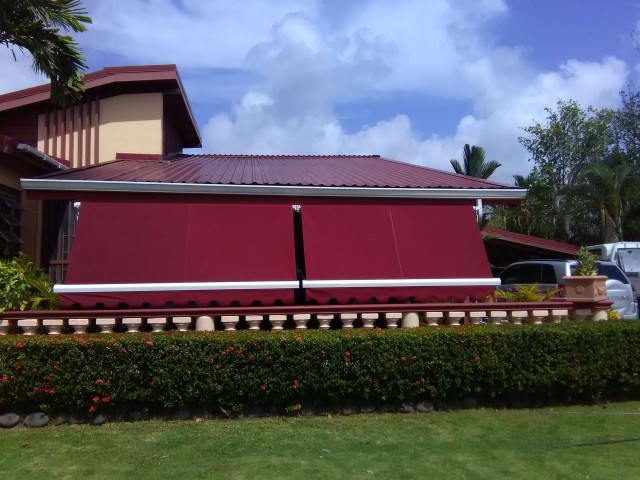

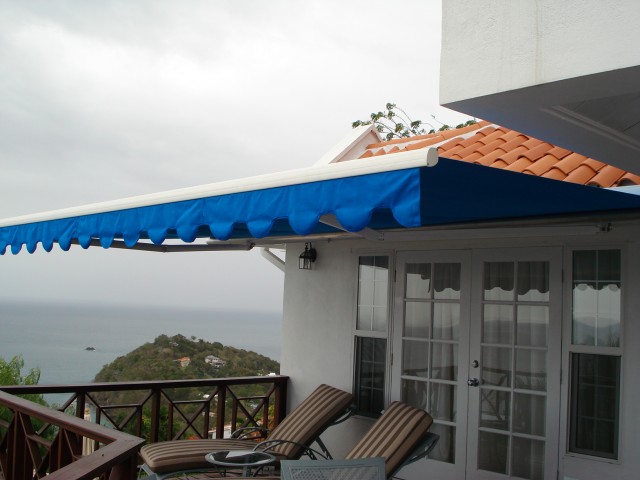

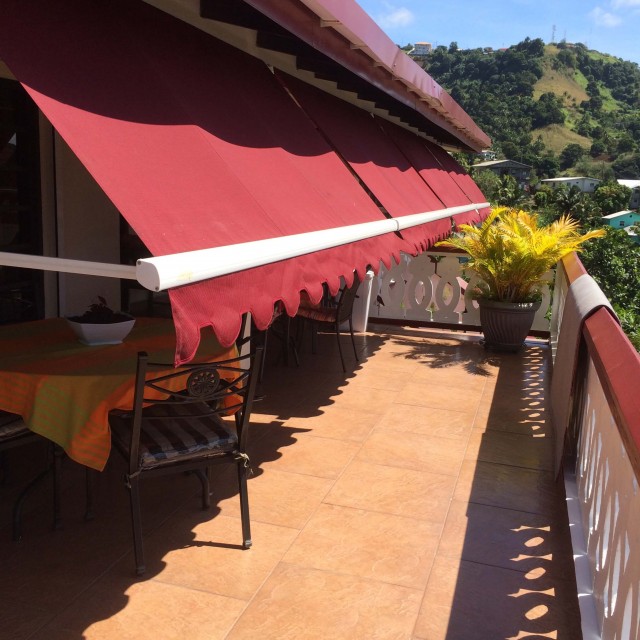

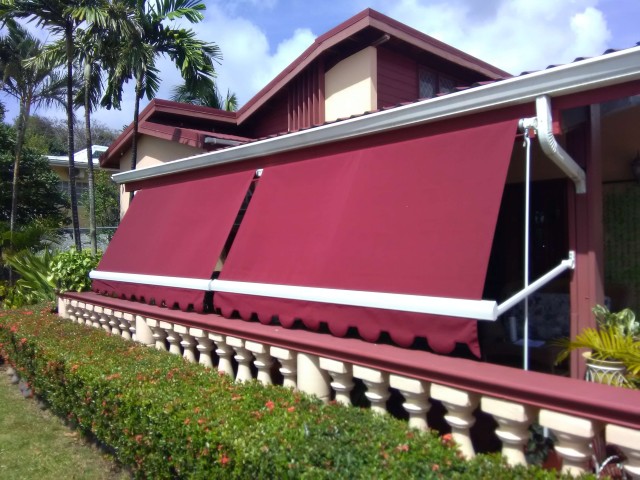

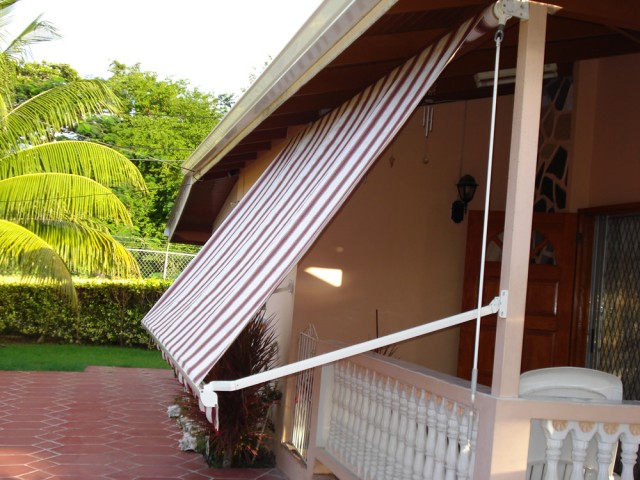

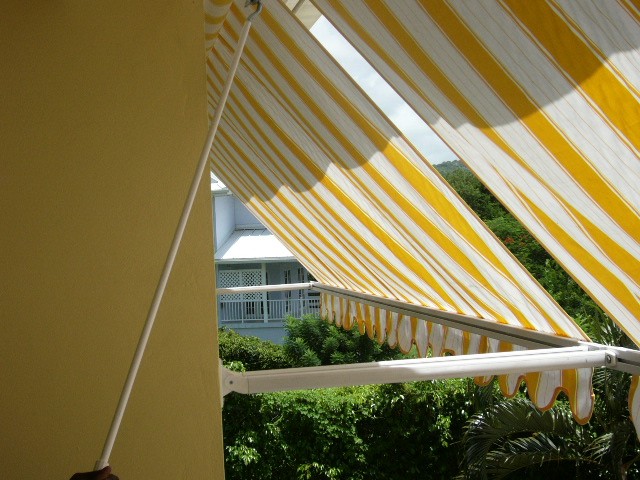

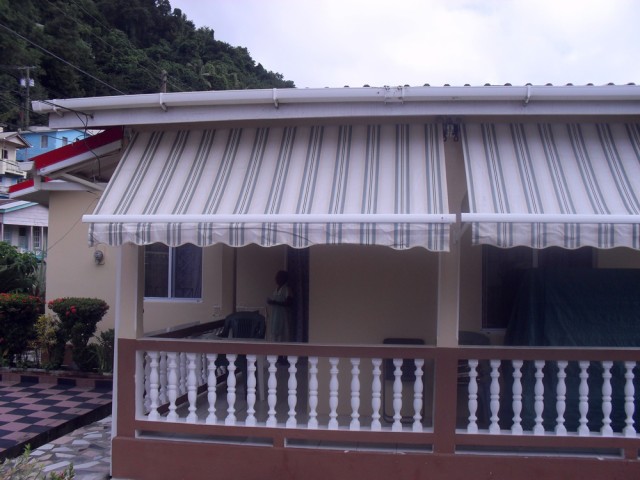

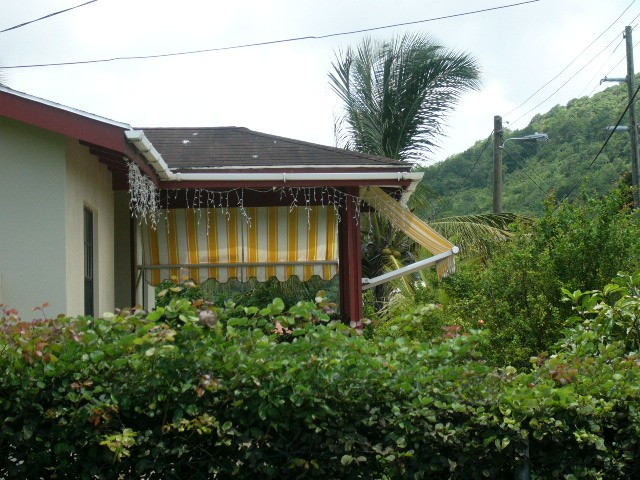

Retractable Shade Awnings

The Retractable Shade Awnings is an excellent solution to the afternoon sun. The pivoting arm rotates from 0 degrees for full sun to 180 degrees for complete shade.

When it is not in use it will roll up on its tube and the valance will add a distinct look to your window while the arms rest at the sides.

MORE
  • Can move from 0 degrees to 180 degrees
  • All products are white powder coated
  • Brackets and roller tubes are made of heavy-duty extruded aluminum
  • Operated by manual gear and hand crank
  • Warranty - hardware and fabric is guaranteed for five years against defects in craftsmanship and materials under normal wear and tear conditions
  • The awning hardware is maintenance free
  • Fabric can be either 100% woven acrylic or PVC coated and come in a variety of colours
  • Awnings can be motorized - recommend motorization for awnings beyond 15ft
  • Manual Operation with Hand Crank or Motorization
  • Motors 110 volts or 220 volts
  • Sun and Wind Sensors
  • Remote Control
  • Variety of Fabric
  • Variety of Valance Styles

FABRIC TYPES FOR AWNINGS, CANOPIES & TENTS

Sunbrella or Dickson
100% Solution Dyed Acrylic
Exclusive fluorocarbon finish
Water repellent
Resistant to Ultraviolet rays
Mildew resistant (if maintained and cleaned)

Vinyl Laminated Polyester Awning Fabric
Resists acid rain and air pollution discoloration
Exceptionally Smooth surface
Certified Flame Resistance by California State Fire Marshall

Dickson Nite-Lite
For Back-Lit awnings and Sign Fabric
Vinyl Laminated Polyester Scrim
White underside for illumination
Ease of cleaning
Flame retardant

Firesist
Fabric woven from inherently fire retardant polymer,
Backed with a durable urethane/acrylic coating
Very resistant to Ultraviolet rays
Water repellent
Excellent mildew resistance (if maintained and cleaned)

   Sunbrella
   Sattler-Corp
   Sattler-Ag

VALANCE / SCALLOP

There are different styles of valances for all awnings and canopies. Calderon #1 and Caribbean #2 are the most popular styles but you can choose any style you wish. The valances can be 8", 10" or 12" long as required. The awning valance comes with a ¼" binding. There are various biding colours from which to choose.

The Awning valance is easily removable on retractable awnings by removing the end cap and pulling the fabric out.

There is no additional cost for awning valance.

Measure the Width of the Window/Door from the inside left to inside right. Add 6” on either side of the awning: so add an additional 12” to the inside awning width to obtain your finished awning width.

Measure the drop of the window from the mounting point to the centerline of the window. The projection is the same as the drop. This represents the measurement for surface installation. For Recess Installation, measure the inside width from left to right and the drop from the mounting point to the centerline of the window. The projection is the same as the drop.

01101

Considerations

  • The maximum projection is 5’
  • The maximum width is 19’1”
  • Remember the fabric is narrower than the total width of the awning
  • The width depends on the available space and the needs of the Customer
  • The surface(s) should be level and flat – check the type of surface to which the awning will be attached
  • If motorized, on what side do you want the motor depending on where the electrical source is located
  • When measuring please consider all down pipes, air condition pipes, light fixtures molding, etc. that may affect your installation.
  • The type of installation, recess or surface
Let us cover your world

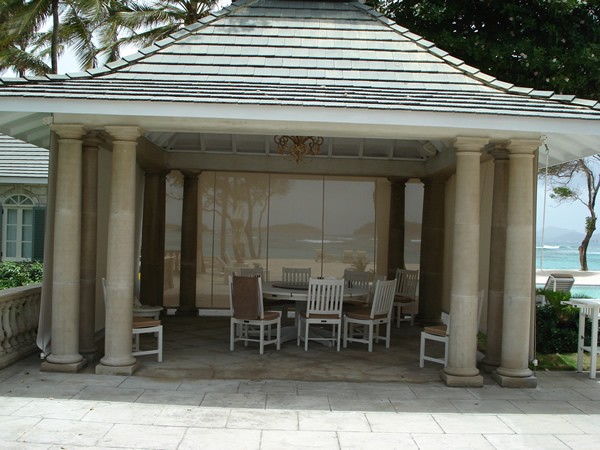

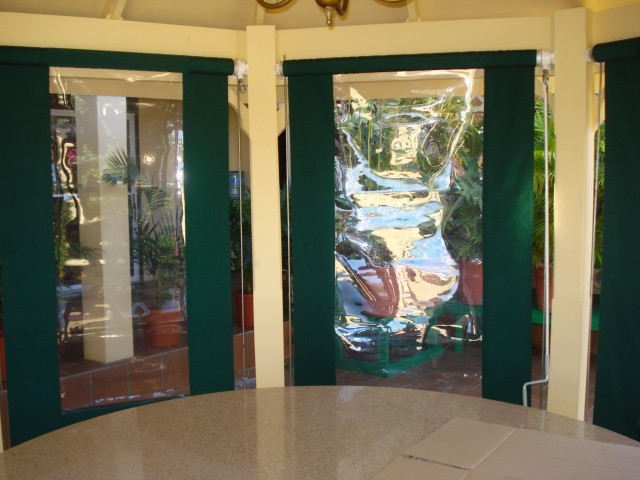

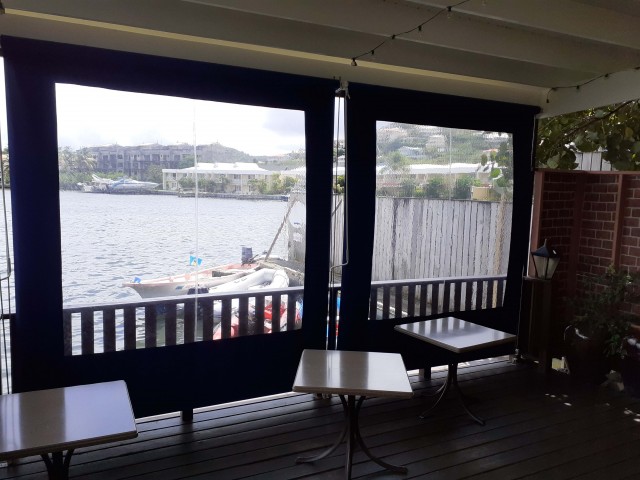

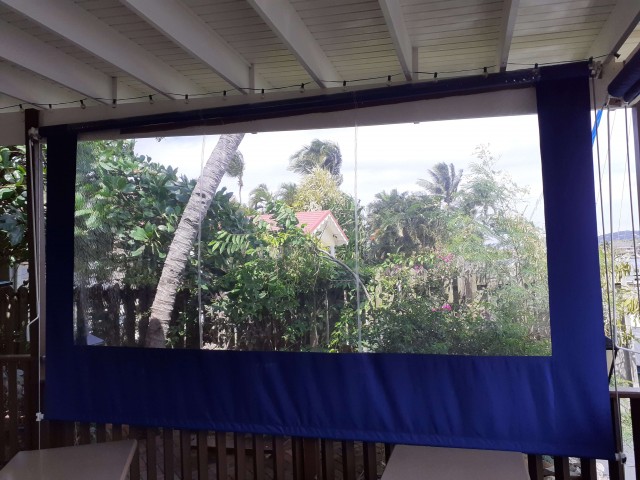

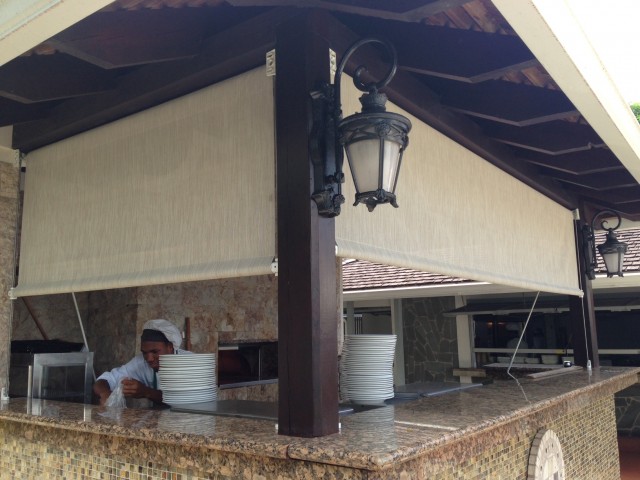

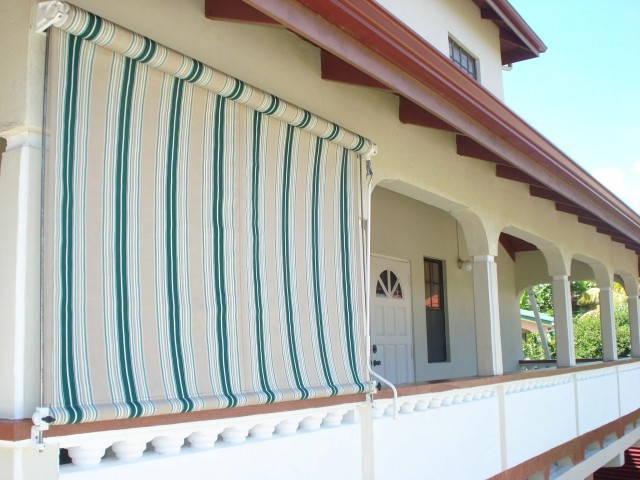

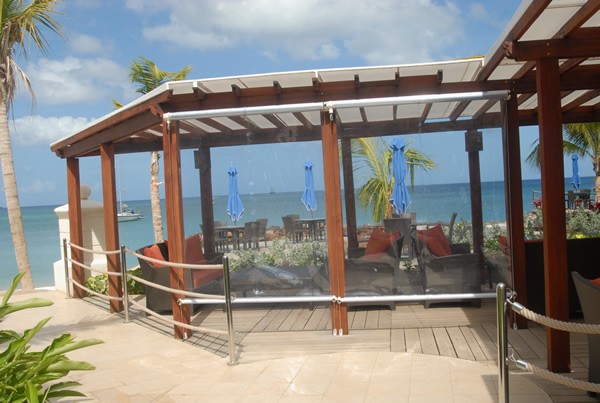

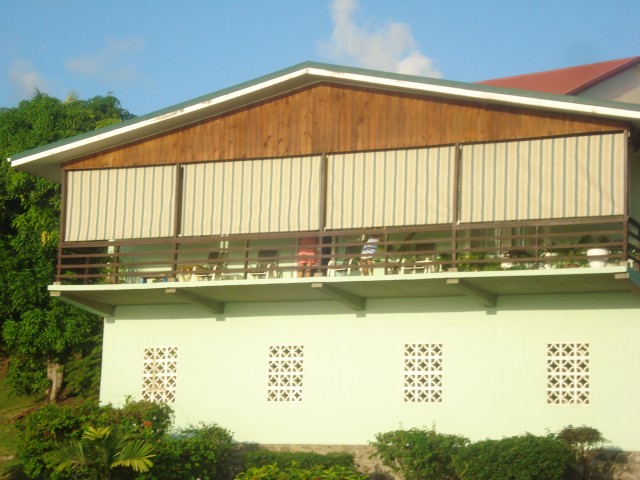

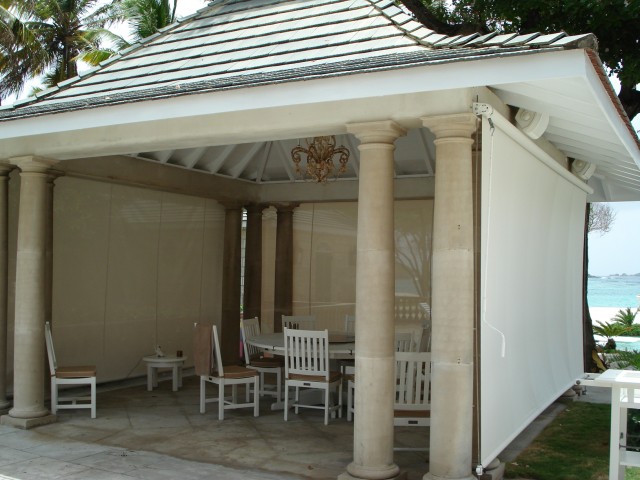

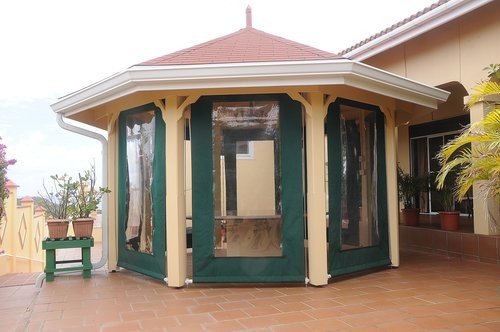

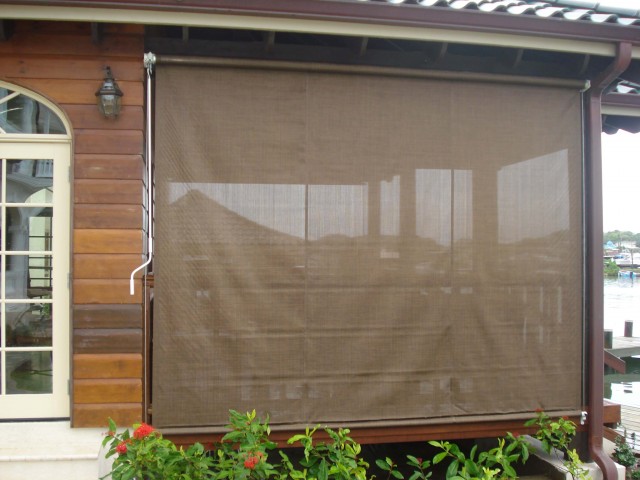

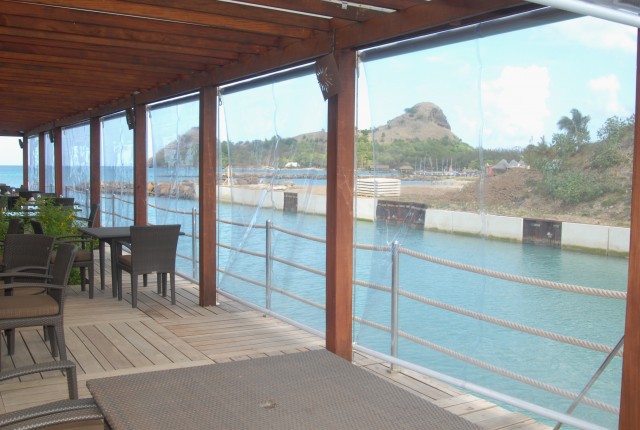

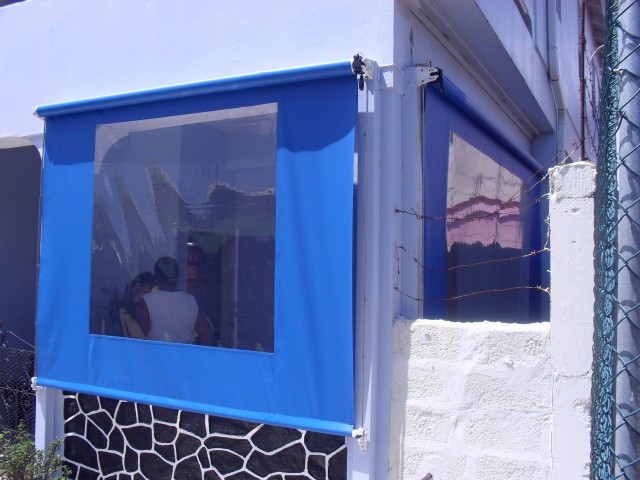

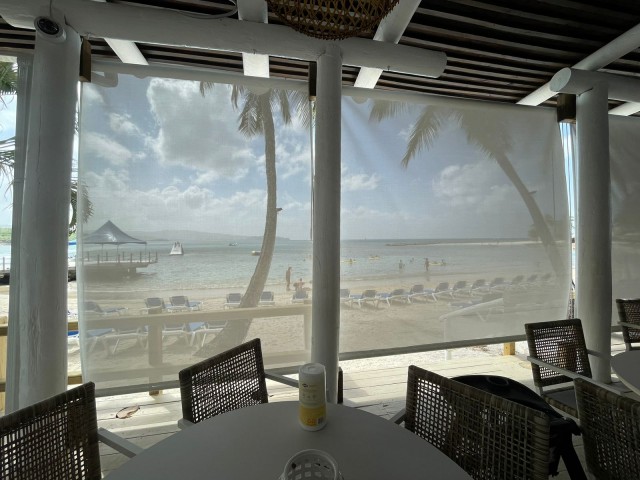

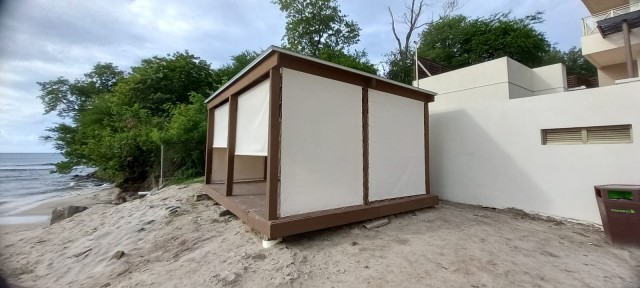

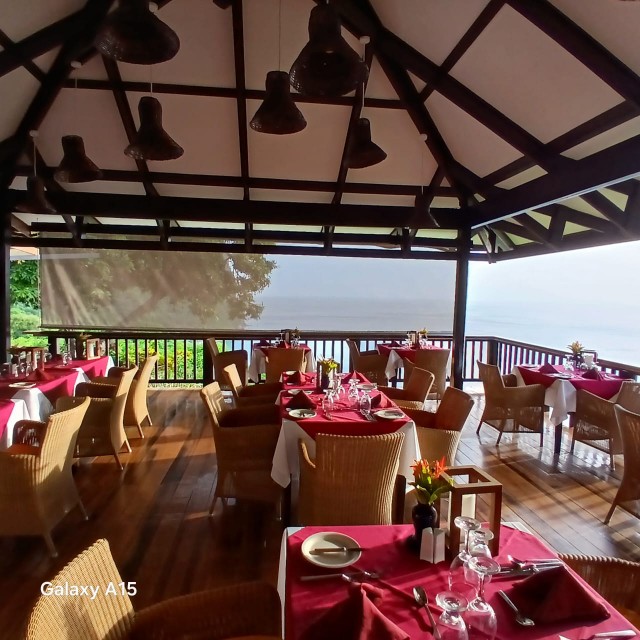

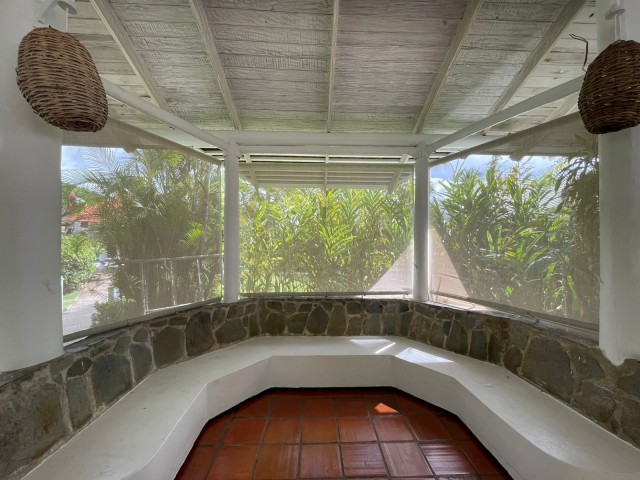

Vertical Drop Awnings

Vertical Drop Awnings are designed for vertical facades and large window applications. They add beauty to your building and can safeguard your room's interior from the sun's harmful rays and also offers complete privacy.

The systems are custom made and are operated manually or motorized. The vertical drop awnings can be mounted on the ceiling or on wall surfaces.

MORE
  • Guide rails can be aluminum track or the more popular stainless steel rod
  • Tubes and other parts made of aluminum
  • Manual Operation or motorized
  • Maximum width 19’1”
  • Maximum Height or length 10’
  • See fabrics available
  • Manual Operation with Hand Crank or Motorization
  • Motors 110 volts or 220 volts
  • Remote Control
  • Can be mounted on the Ceiling or on the Wall surface
  • Variety of Fabric
  • Variety of Valance Styles

FABRIC TYPES FOR AWNINGS, CANOPIES & TENTS

Sunbrella or Dickson
100% Solution Dyed Acrylic
Exclusive fluorocarbon finish
Water repellent
Resistant to Ultraviolet rays
Mildew resistant (if maintained and cleaned)

Vinyl Laminated Polyester Awning Fabric
Resists acid rain and air pollution discoloration
Exceptionally Smooth surface
Certified Flame Resistance by California State Fire Marshall

Dickson Nite-Lite
For Back-Lit awnings and Sign Fabric
Vinyl Laminated Polyester Scrim
White underside for illumination
Ease of cleaning
Flame retardant

Firesist
Fabric woven from inherently fire retardant polymer,
Backed with a durable urethane/acrylic coating
Very resistant to Ultraviolet rays
Water repellent
Excellent mildew resistance (if maintained and cleaned)

   Sunbrella
   Sattler-Corp
   Sattler-Ag

VALANCE / SCALLOP

There are different styles of valances for all awnings and canopies. Calderon #1 and Caribbean #2 are the most popular styles but you can choose any style you wish. The valances can be 8", 10" or 12" long as required. The awning valance comes with a ¼" binding. There are various biding colours from which to choose.

The Awning valance is easily removable on retractable awnings by removing the end cap and pulling the fabric out.

There is no additional cost for awning valance.

Measure the Width of the Window/Door from the inside left to inside right. Add 6” on either side of the Vertical Drop Awning: so add an additional 12” to the inside awning width to obtain your finished awning width.

Measure the drop of the window from the mounting point to the centerline of the window. The projection is the same as the drop. This represents the measurement for surface installation. For Recess Installation, measure the inside width from left to right and the drop from the mounting point to the centerline of the window. The projection is the same as the drop.

Considerations

  • The maximum Height is 10’
  • The maximum width is 19’1”
  • Remember the fabric is narrower than the total width of the Awning
  • The width depends on the available space and the needs of the Customer
  • The surface(s) should be level and flat – check the type of surface to which the Vertical Drop Awning will be attached
  • If motorized, on what side do you want the motor depending on where the electrical source is located
  • When measuring please consider all down pipes, air condition pipes, light fixtures molding, etc. that may affect your installation.
