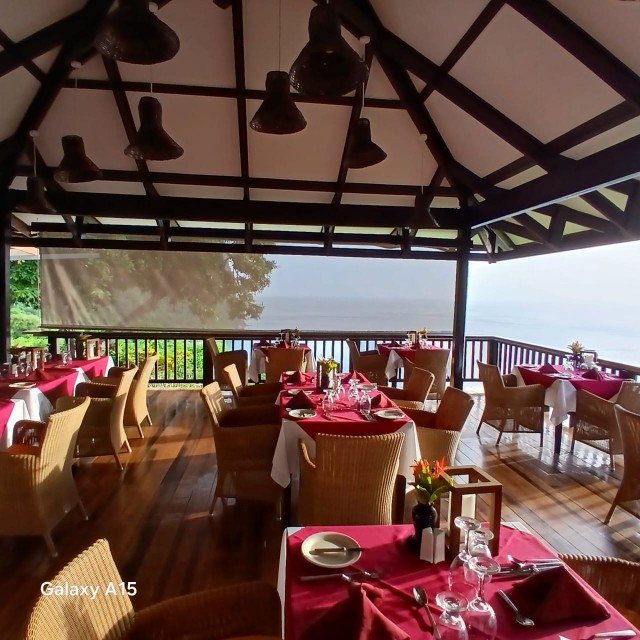

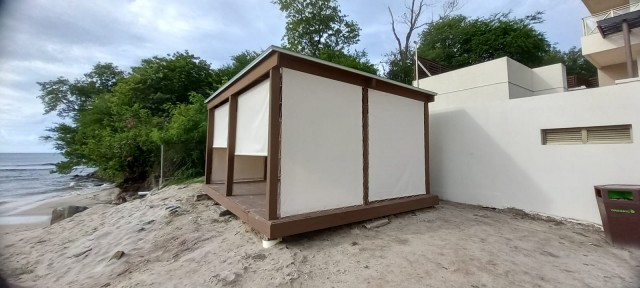

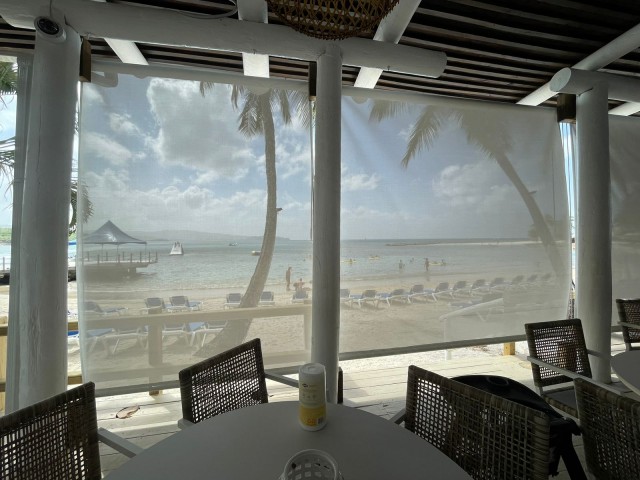

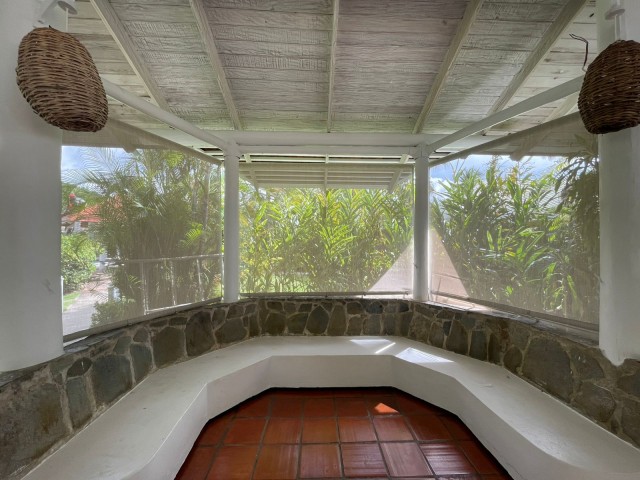

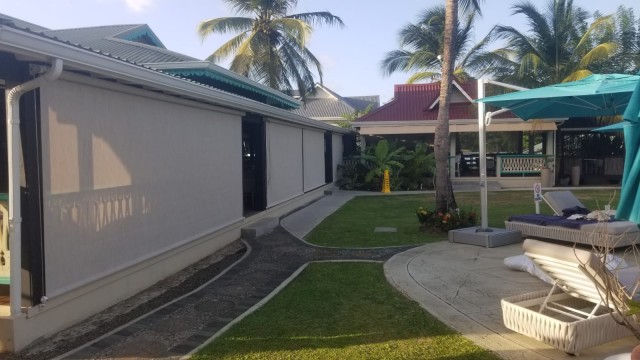

Vertical Drop Awnings

• Guide rails can be aluminum track or the more popular stainless steel rod
• Tubes and other parts made of aluminum
• Manual Operation or motorized
• Maximum width 19’1”
• Maximum Height or length 10’
• See fabrics available

• Manual Operation with Hand Crank or Motorization
• Motors 110 volts or 220 volts
• Remote Control
• Can be mounted on the Ceiling or on the Wall surface
• Variety of Fabric
• Variety of Valance Styles

FABRIC TYPES FOR AWNINGS, CANOPIES & TENTS

Sunbrella or Dickson
100% Solution Dyed Acrylic
Exclusive fluorocarbon finish
Water repellent
Resistant to Ultraviolet rays
Mildew resistant (if maintained and cleaned)

Vinyl Laminated Polyester Awning Fabric
Resists acid rain and air pollution discoloration
Exceptionally Smooth surface
Certified Flame Resistance by California State Fire Marshall

Dickson Nite-Lite
For Back-Lit awnings and Sign Fabric
Vinyl Laminated Polyester Scrim
White underside for illumination
Ease of cleaning
Flame retardant

Firesist
Fabric woven from inherently fire retardant polymer,
Backed with a durable urethane/acrylic coating
Very resistant to Ultraviolet rays
Water repellent
Excellent mildew resistance (if maintained and cleaned)

   Sunbrella
   Sattler-Corp
   Sattler-Ag

VALANCE / SCALLOP

There are different styles of valances for all awnings and canopies. Calderon #1 and Caribbean #2 are the most popular styles but you can choose any style you wish. The valances can be 8", 10" or 12" long as required. The awning valance comes with a ¼" binding. There are various biding colours from which to choose.

The Awning valance is easily removable on retractable awnings by removing the end cap and pulling the fabric out.

There is no additional cost for awning valance.

Measure the Width of the Window/Door from the inside left to inside right. Add 6” on either side of the Vertical Drop Awning: so add an additional 12” to the inside awning width to obtain your finished awning width.

Measure the drop of the window from the mounting point to the centerline of the window. The projection is the same as the drop. This represents the measurement for surface installation. For Recess Installation, measure the inside width from left to right and the drop from the mounting point to the centerline of the window. The projection is the same as the drop.

Considerations

• The maximum Height is 10’
• The maximum width is 19’1”
• Remember the fabric is narrower than the total width of the Awning
• The width depends on the available space and the needs of the Customer
• The surface(s) should be level and flat – check the type of surface to which the Vertical Drop Awning will be attached
• If motorized, on what side do you want the motor depending on where the electrical source is located
• When measuring please consider all down pipes, air condition pipes, light fixtures molding, etc. that may affect your installation.
