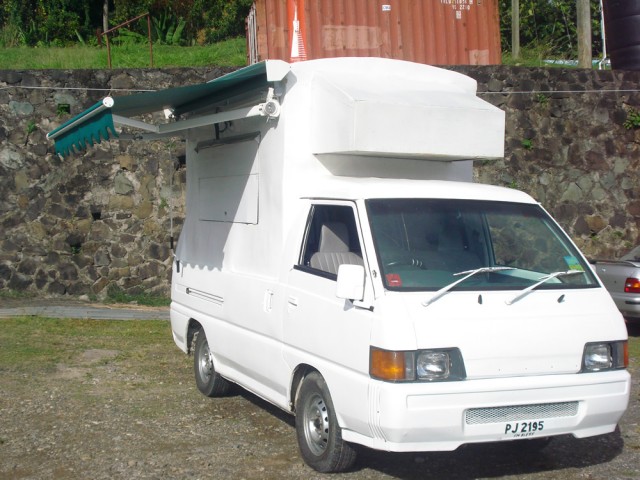

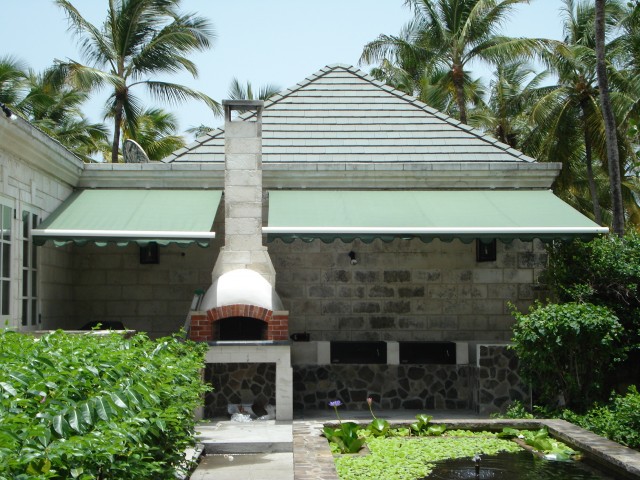

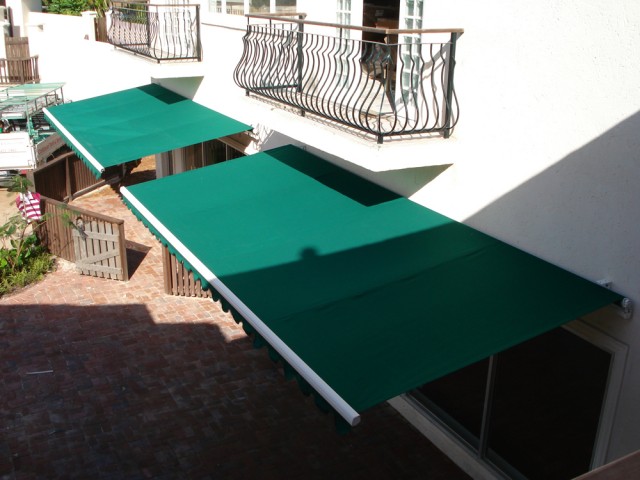

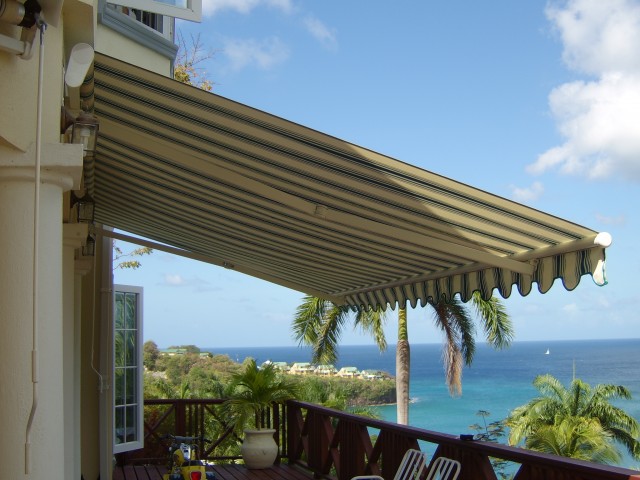

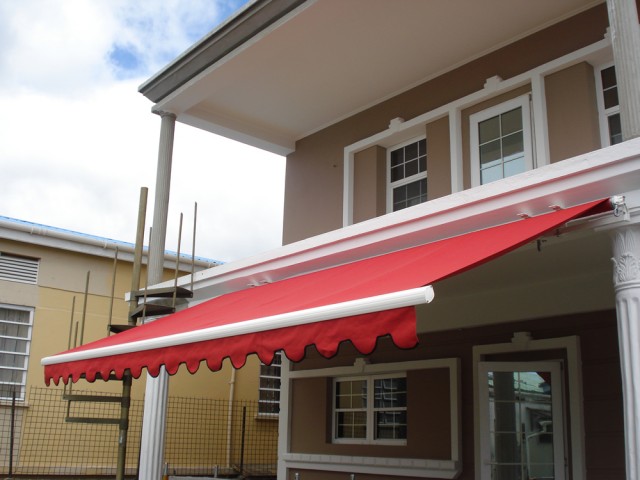

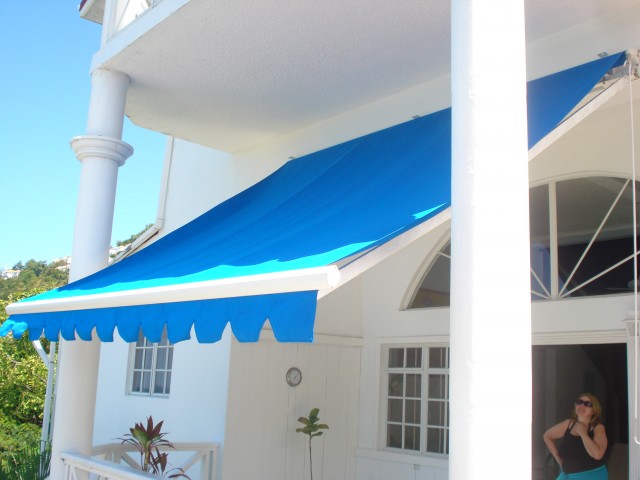

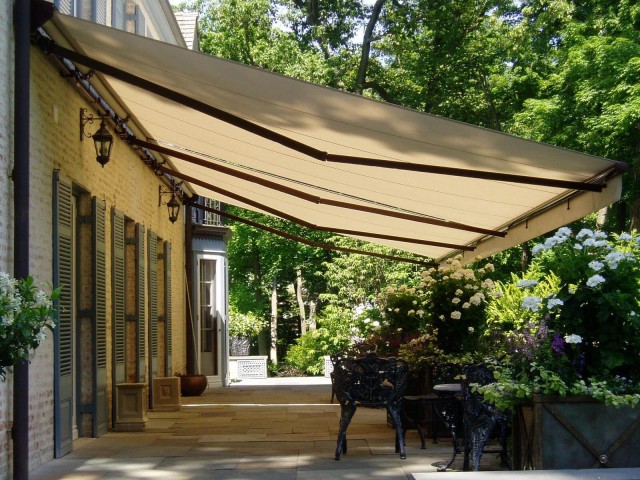

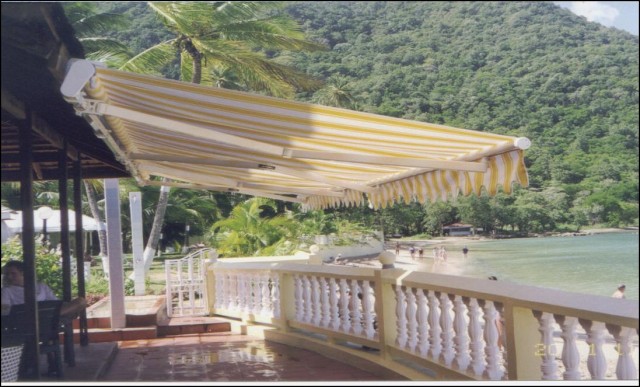

Lateral Arm Awnings

FEATURES

• Adjustable angle control
• Retractable arm include stainless steel chain hinge for maximum durability
• Shafts and cables are produced from non-corrosive materials
• Brackets and roller tubes are made of heavy-duty extruded aluminum
• Various styles of mounting bracket options allow for installation flexibility
• Aluminum hood offers protection against the elements
• Operated by manual gear and hand crank
• Warranty - hardware and fabric is guaranteed for five years against defects in craftsmanship and materials under normal wear and tear conditions.
• The awning hardware is maintenance free
• Fabric can be either 100% woven acrylic or PVC coated and come in a variety of colours
• Awnings can be motorized

Lateral Arm Awnings

• Manual Operation with Hand Crank or Motorization
• Motors 110 volts or 220 volts
• Sun and Wind Sensors
• Remote Control
• Variety of Fabric
• Variety of Valance Styles

FABRIC TYPES FOR AWNINGS, CANOPIES & TENTS

Sunbrella or Dickson
100% Solution Dyed Acrylic
Exclusive fluorocarbon finish
Water repellent
Resistant to Ultraviolet rays
Mildew resistant (if maintained and cleaned)


Vinyl Laminated Polyester Awning Fabric
Resists acid rain and air pollution discoloration
Exceptionally Smooth surface
Certified Flame Resistance by California State Fire Marshall


Dickson Nite-Lite
For Back-Lit awnings and Sign Fabric
Vinyl Laminated Polyester Scrim
White underside for illumination
Ease of cleaning
Flame retardant


Firesist
Fabric woven from inherently fire retardant polymer,
Backed with a durable urethane/acrylic coating
Very resistant to Ultraviolet rays
Water repellent
Excellent mildew resistance (if maintained and cleaned)

   Sunbrella
   Sattler-Corp
   Sattler-Ag

VALANCE / SCALLOP

There are different styles of valances for all awnings and canopies. Calderon #1 and Caribbean #2 are the most popular styles but you can choose any style you wish. The valances can be 8", 10" or 12" long as required. The awning valance comes with a ¼" binding. There are various biding colours from which to choose.

The Awning valance is easily removable on retractable awnings by removing the end cap and pulling the fabric out.

There is no additional cost for awning valance.

Measure the height of the wall when Installing your awning. The most important requirement when measuring is the height. Ensure that there is enough space when the awning is extended for someone to walk under. Additionally keep in mind that the pitch of the awning should be at least 18 degrees.

The minimum height is 7’10” (to the bottom of the mounting bracket)

Measure the width of the awning from left to right based on the customers needs. Ensure that you have at least 8 inches of clear, unobstructed space where the awning will fit against the house. If placing the awning on the fascia board, the fascia board should be no less that 8” wide and should be well anchored to hold the awning.

Regular Width: 7’10”, 11’7”, 15’4”, 19’1”
Regular Projection: 8’, 10’, 11’6”

Considerations

• The height required when positioning between two points
• Without a hood – 7’ 7/8” – with a hood 8’7/8”
• A hood is not necessary if there is an overhead or soffit – the size of the hood is 2” larger than the awning itself
• Remember the fabric is narrower than the total width of the awning
• The width depends on the available space and the needs of the Customer - 6” on each side
• The surface(s) should be level and flat – check the type of surface to which the awning will be attached
• If motorized, on what side do you want the motor depending on where the electrical source is located
• We recommend motorization if the awing is over 7ft wide and 8ft projection
• When measuring please consider all down pipes, air condition pipes, light fixtures molding, etc. that may affect your installation.
• The type of installation, recess or surface
